SCN-3-16+ - Mini-Circuits

Description: Signal Conditioning 3 Ways LTCC Power Splitter, 950 - 1600 MHz, 50 ohms

Download SCN-3-16+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

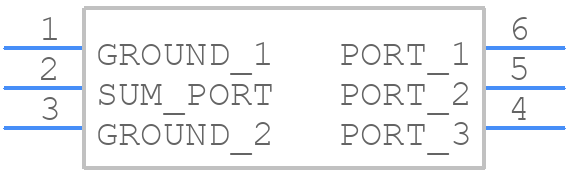

SCN-3-16+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SCN-3-16+ - Mini-Circuits PCB footprint - Other - Other - SCN-3-16+-2
click to zoom
3D Models
SCN-3-16+ - Mini-Circuits - 3D model - Other - SCN-3-16+-2
click to zoom

SCN-3-16+ Details

  • Manufacturer Part Number:

    SCN-3-16+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CASE FV1206-1, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.95

  • Additional Feature:

    ISOLATION-MIN (DB):11

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    41.76 dBm

  • Insertion Loss-Max:

    1.2 dB

  • Operating Frequency-Max:

    1600 MHz

  • Operating Frequency-Min:

    950 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • RF/Microwave Device Type:

    COMBINER

SCN-3-16+ Frequently Asked Questions (FAQs)

  • The maximum power handling of the SCN-3-16+ is 1 watt. Exceeding this power rating may cause damage to the device.
  • The SCN-3-16+ is rated for operation up to 65°C. While it can tolerate short-term excursions up to 85°C, prolonged exposure to high temperatures may affect its performance and reliability.
  • To achieve the best possible return loss with the SCN-3-16+, ensure that the device is properly matched to the system impedance (typically 50 ohms), and that the input and output ports are properly terminated.
  • While the SCN-3-16+ is designed for 50 ohm systems, it can be used in non-50 ohm systems with proper impedance matching. However, this may affect its performance and require additional circuitry to achieve optimal results.
  • The typical insertion loss of the SCN-3-16+ is around 0.5 dB, although this can vary depending on the specific application and operating frequency.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCN-3-16+ Overview

Use the download button to access the SCN-3-16+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCN-3, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
