SCP-4-1W+ - Mini-Circuits

Description: Surface Mount Power Splitter/Combiner

Download SCP-4-1W+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

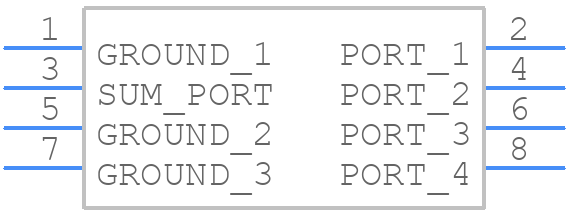

Symbol
SCP-4-1W+ - Mini-Circuits - PCB symbol
click to zoom

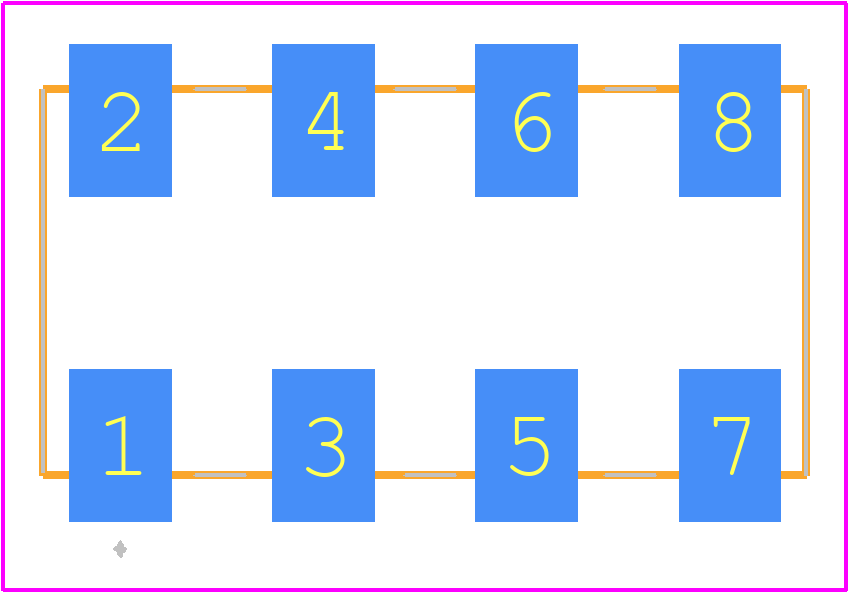

PCB Footprints
SCP-4-1W+ - Mini-Circuits PCB footprint - Other - Other - SCP-4-1W+-1
click to zoom
3D Models
SCP-4-1W+ - Mini-Circuits - 3D model - Other - SCP-4-1W+-1
click to zoom

SCP-4-1W+ Details

  • Manufacturer Part Number:

    SCP-4-1W+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.45

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    1.9 dB

  • Isolation-Min:

    15 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    650 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    SPLITTER AND COMBINER

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

SCP-4-1W+ Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for SCP-4-1W+ is -40°C to +85°C, although it's recommended to operate within -20°C to +70°C for optimal performance.
  • To ensure proper impedance matching, use a 50-ohm transmission line and terminate the output with a 50-ohm load. You can also use a pi-network or a resistive pad to match the impedance.
  • For optimal performance, keep the PCB layout as compact as possible, and maintain a minimum spacing of 0.5 mm between the component and other nearby components. Use a ground plane and vias to reduce noise and radiation.
  • Yes, SCP-4-1W+ can be used in switching power supply applications, but ensure that the input voltage is within the recommended range (2-12V) and the output current is within the maximum rating (1W). Also, consider the power supply's noise and ripple requirements.
  • To handle ESD protection, use a static-dissipative workstation, wear an ESD strap, and handle the component by the body or pins. Avoid touching the component's pins or exposed internal components. You can also use ESD protection devices, such as TVS diodes, in your circuit design.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCP-4-1W+ Overview

Use the download button to access the SCP-4-1W+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCP-4, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
