SCPS-4-62+ - Mini-Circuits

Description: Signal Conditioning 4 Ways Core & Wire Power Splitter, 1 - 650 MHz, 50?

Download SCPS-4-62+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

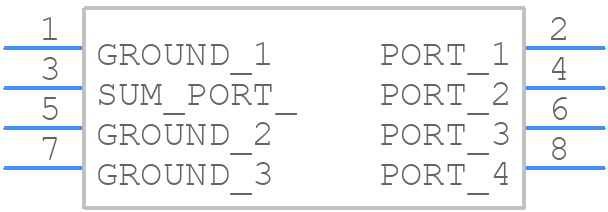

SCPS-4-62+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SCPS-4-62+ - Mini-Circuits PCB footprint - Other - Other - HF1485-1
click to zoom
3D Models
SCPS-4-62+ - Mini-Circuits - 3D model - Other - HF1485-1
click to zoom

SCPS-4-62+ Details

  • Manufacturer Part Number:

    SCPS-4-62+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.4

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    1.8 dB

  • Isolation-Min:

    18 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    650 MHz

  • Operating Frequency-Min:

    1 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    DILCC8,.4,200

  • RF/Microwave Device Type:

    SPLITTER AND COMBINER

  • Surface Mount:

    YES

  • VSWR-Max:

    1.65
