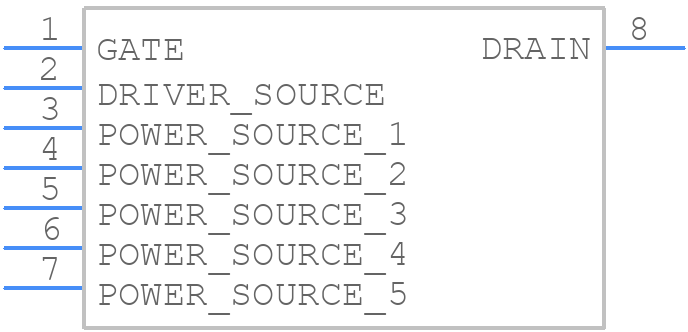

SCT020H75G3AG footprint, schematic symbol and 3D model by STMicroelectronics

Symbol

click to zoom

PCB Footprints

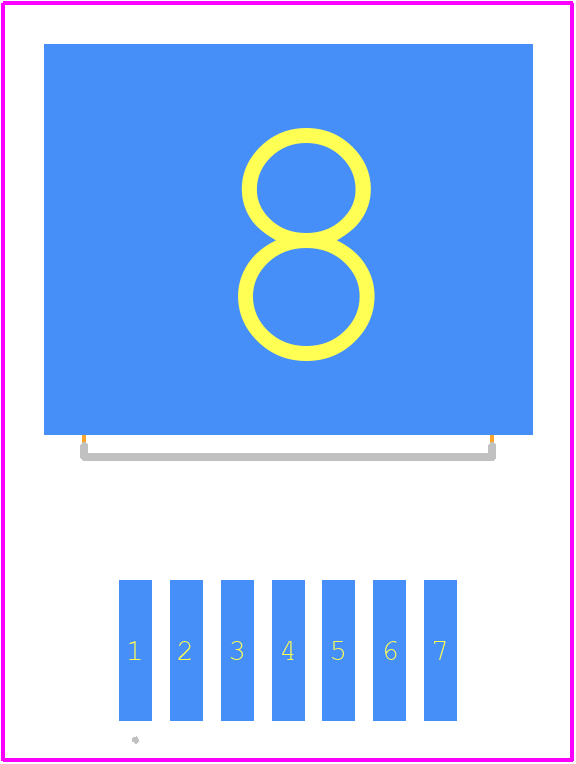

SCT020H75G3AG - STMicroelectronics PCB footprint - Other - Other - H²PAK-7_2025

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SCT020H75G3AG
Part Number SCT020H75G3AG
Manufacturer STMicroelectronics
Pin Count 8
Part Category MOSFET (N-Channel)
Package Category Other
Footprint Name Other - H²PAK-7_2025
Released Date Mar 15, 2025
Last Modified Date Jan 8, 2026 2:31 PM UTC
Pinout / Pin List Click Here (Member Only)

SCT020H75G3AG Details

Manufacturer Part Number:
SCT020H75G3AG
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
STMicroelectronics
YTEOL:
9

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SCT020H75G3AG Overview

Use the download button to access the SCT020H75G3AG schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SCT02, or try a keyword search, such as Power Field-Effect Transistors
