SCT060HU75G3AG - STMicroelectronics

Description: Automotive-grade silicon carbide Power MOSFET 750 V, 58 mOhm typ., 30 A in an HU3PAK package

Download SCT060HU75G3AG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

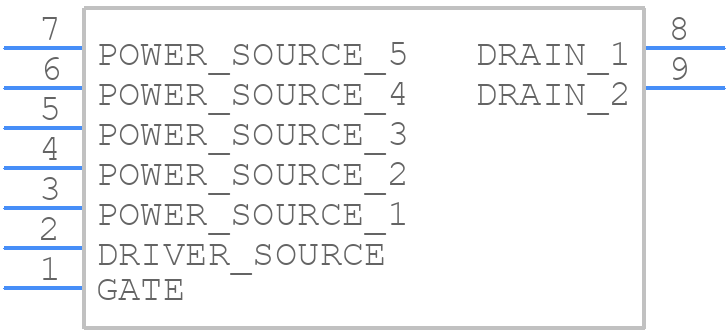

Symbol
SCT060HU75G3AG - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
SCT060HU75G3AG - STMicroelectronics PCB footprint - Other - Other - SCT060HU75G3AG-1
click to zoom
3D Models
SCT060HU75G3AG - STMicroelectronics - 3D model - Other - SCT060HU75G3AG-1
click to zoom

SCT060HU75G3AG Details

  • Manufacturer Part Number:

    SCT060HU75G3AG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    40 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    750 V

  • Drain Current-Max (ID):

    30 A

  • Drain-source On Resistance-Max:

    0.078 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    9 pF

  • JESD-30 Code:

    R-PSSO-G7

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    7

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    185 W

  • Pulsed Drain Current-Max (IDM):

    132 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE

SCT060HU75G3AG Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in their application note AN5046, which includes guidelines for thermal pad connection, copper thickness, and via placement to ensure optimal thermal performance.
  • You can calculate the junction temperature (Tj) using the formula: Tj = Tc + (Rthjc * Pd), where Tc is the case temperature, Rthjc is the junction-to-case thermal resistance, and Pd is the power dissipation. The thermal resistance values can be found in the datasheet.
  • The maximum allowed voltage for the SCT060HU75G3AG is 75V, as specified in the datasheet. Exceeding this voltage may damage the device.
  • To ensure proper biasing, follow the recommended biasing scheme in the datasheet, which includes setting the gate-source voltage (Vgs) and drain-source voltage (Vds) within the specified ranges. Additionally, ensure the device is operated within the recommended operating conditions.
  • The recommended gate resistor value depends on the specific application and switching frequency. A general guideline is to use a gate resistor in the range of 10Ω to 100Ω. However, it's recommended to consult the datasheet and application notes for more specific guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCT060HU75G3AG Overview

Use the download button to access the SCT060HU75G3AG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCT06, or try a keyword search, such as Power Field-Effect Transistors
