SCT2080KEGC11 - ROHM Semiconductor

Description: N-Channel 1200 V 40A (Tc) 262W (Tc) Through Hole TO-247N

Download SCT2080KEGC11 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SCT2080KEGC11 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints

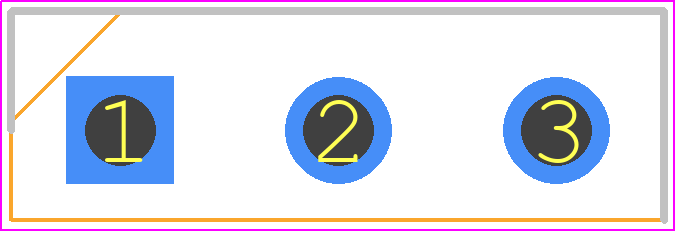

SCT2080KEGC11 - ROHM Semiconductor PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO247
click to zoom
3D Models
SCT2080KEGC11 - ROHM Semiconductor - 3D model - Transistor Outline, Vertical - TO247
click to zoom

SCT2080KEGC11 Details

  • Manufacturer Part Number:

    SCT2080KEGC11

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TO-247N, 3 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    6

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    1200 V

  • Drain Current-Max (ID):

    40 A

  • Drain-source On Resistance-Max:

    0.117 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    16 pF

  • JEDEC-95 Code:

    TO-247

  • JESD-30 Code:

    R-PSFM-T3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Packing Method:

    TUBE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    262 W

  • Pulsed Drain Current-Max (IDM):

    80 A

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE

SCT2080KEGC11 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern is recommended for optimal thermal performance.
  • Ensure that the device is operated within the recommended temperature range (TJ = -40°C to 150°C). Use a heat sink or thermal interface material to reduce thermal resistance. Monitor the device's junction temperature to prevent overheating.
  • A 10uF to 22uF X7R or X5R ceramic capacitor is recommended for input decoupling. The capacitor should be placed as close to the VIN pin as possible to minimize noise and ensure stable operation.
  • Use a TVS diode or a transient voltage suppressor to protect the device from voltage spikes and surges. Ensure that the input voltage does not exceed the recommended maximum rating (VIN = 5.5V).
  • A 10uF to 22uF X7R or X5R ceramic capacitor is recommended for output filtering. The capacitor should be placed as close to the VOUT pin as possible to minimize noise and ensure stable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCT2080KEGC11 Overview

Use the download button to access the SCT2080KEGC11 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCT20, or try a keyword search, such as Power Field-Effect Transistors
