SCT2H12NZGC11 - ROHM Semiconductor

Description: ROHM - SCT2H12NZGC11 - MOSFET, N-CH, 1.7KV, 3.7A, TO-3PFM

Download SCT2H12NZGC11 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SCT2H12NZGC11 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints

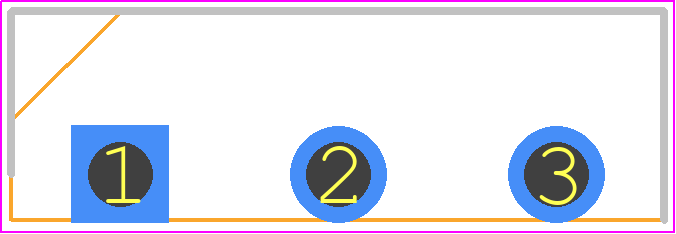

SCT2H12NZGC11 - ROHM Semiconductor PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO-3PFM
click to zoom
3D Models
SCT2H12NZGC11 - ROHM Semiconductor - 3D model - Transistor Outline, Vertical - TO-3PFM
click to zoom

SCT2H12NZGC11 Details

  • Manufacturer Part Number:

    SCT2H12NZGC11

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, TO-3PFM, 3 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    27 Weeks

  • Date Of Intro:

    2016-02-23

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    6.2

  • Case Connection:

    ISOLATED

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    1700 V

  • Drain Current-Max (ID):

    3.7 A

  • Drain-source On Resistance-Max:

    1.5 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PSFM-T3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    9.2 A

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE

SCT2H12NZGC11 Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • The device requires a stable input voltage (VIN) and a bypass capacitor (CBYP) to ensure proper biasing. A 10uF ceramic capacitor is recommended for CBYP.
  • The maximum power dissipation (PD) is 2.5W. Exceeding this limit may cause the device to overheat and reduce its lifespan.
  • The device is rated for operation up to 125°C (TJ). However, derating is required for temperatures above 85°C to ensure reliable operation.
  • Handle the device with an ESD wrist strap or mat, and ensure the PCB has ESD protection circuits, such as TVS diodes, to prevent damage.
