ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane or a dedicated heat sink.
The SCT3080ARC14 requires a bias voltage of 2.5V to 5.5V on the VCC pin, and a bias current of 10uA to 100uA on the IBIAS pin. Ensure that the bias voltage and current are within the recommended range to achieve optimal performance and accuracy.
The maximum allowable power dissipation for the SCT3080ARC14 is 1.5W. Exceeding this limit can cause the device to overheat, leading to reduced performance, accuracy, and lifespan.
The output signal of the SCT3080ARC14 is a differential voltage signal. To ensure accurate current sensing, use a differential amplifier or an instrumentation amplifier to amplify and condition the signal. Additionally, ensure that the output signal is properly filtered and shielded to minimize noise and interference.
The recommended operating temperature range for the SCT3080ARC14 is -40°C to 125°C. Operating the device outside this range can affect its performance, accuracy, and reliability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SCT3080ARC14 Overview

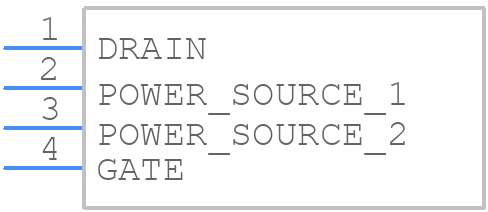

Use the download button to access the SCT3080ARC14 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCT30,
or try a keyword search, such as Power Field-Effect Transistors
