SCT3160KLHRC11 - ROHM Semiconductor

SCT3160KLHRC11 Details

• Manufacturer Part Number:

  SCT3160KLHRC11

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

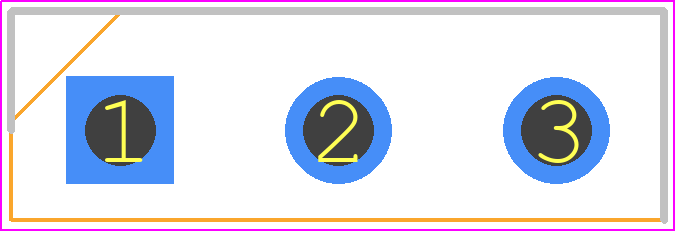

• Package Description:

  TO-247N, 3 PIN

• ECCN Code:

  EAR99

• HTS Code:

  8541.29.00.95

• Factory Lead Time:

  27 Weeks

• Date Of Intro:

  2018-12-11

• Manufacturer:

  ROHM Semiconductor

• YTEOL:

  8

• Configuration:

  SINGLE WITH BUILT-IN DIODE

• DS Breakdown Voltage-Min:

  1200 V

• Drain Current-Max (ID):

  17 A

• Drain-source On Resistance-Max:

  0.208 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• Feedback Cap-Max (Crss):

  18 pF

• JEDEC-95 Code:

  TO-247

• JESD-30 Code:

  R-PSFM-T3

• JESD-609 Code:

  e3

• Number of Elements:

  1

• Number of Terminals:

  3

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  175 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Packing Method:

  TUBE

• Peak Reflow Temperature (Cel):

  265

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation Ambient-Max:

  103 W

• Power Dissipation-Max (Abs):

  103 W

• Pulsed Drain Current-Max (IDM):

  42 A

• Reference Standard:

  AEC-Q101

• Surface Mount:

  NO

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  THROUGH-HOLE

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  10

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON CARBIDE

• Turn-off Time-Max (toff):

  49 ns

• Turn-on Time-Max (ton):

  32 ns
