SCT3160KW7HRTL footprint, schematic symbol and 3D model by ROHM Semiconductor

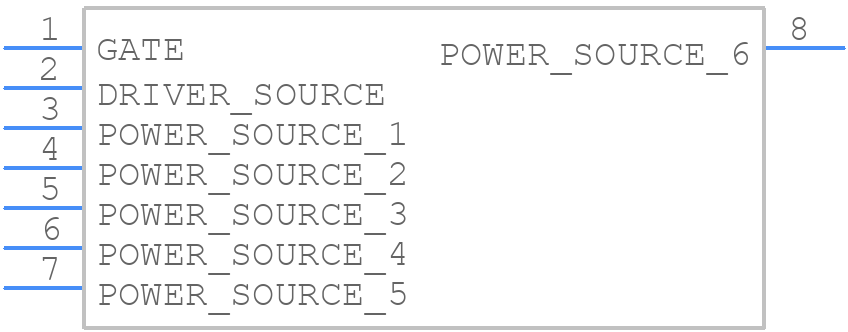

Symbol

click to zoom

PCB Footprints

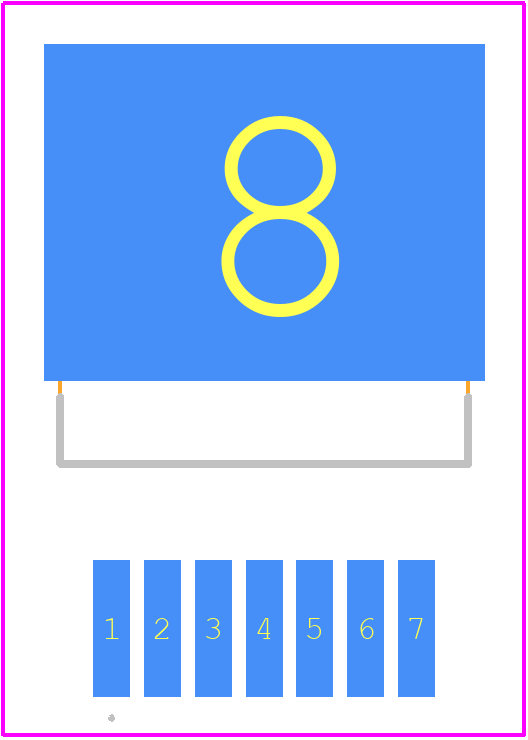

SCT3160KW7HRTL - ROHM Semiconductor PCB footprint - Other - Other - TO-263-7L_2025-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SCT3160KW7HRTL
Part Number SCT3160KW7HRTL
Manufacturer ROHM Semiconductor
Pin Count 8
Part Category MOSFET (N-Channel)
Package Category Other
Footprint Name Other - TO-263-7L_2025-1
Released Date Apr 10, 2025
Last Modified Date Apr 10, 2025 10:21 AM UTC
Pinout / Pin List Click Here (Member Only)

SCT3160KW7HRTL Details

Manufacturer Part Number:
SCT3160KW7HRTL
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
TO-263-7L, 7 PIN
ECCN Code:
EAR99
Factory Lead Time:
27 Weeks
Manufacturer:
ROHM Semiconductor
YTEOL:
7
Case Connection:
DRAIN
Configuration:
SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min:
1200 V
Drain Current-Max (ID):
17 A
Drain-source On Resistance-Max:
0.208 Ω
FET Technology:
METAL-OXIDE SEMICONDUCTOR
Feedback Cap-Max (Crss):
18 pF
JEDEC-95 Code:
TO-263
JESD-30 Code:
R-PSSO-G7
Moisture Sensitivity Level:
1
Number of Elements:
1
Number of Terminals:
7
Operating Mode:
ENHANCEMENT MODE
Operating Temperature-Max:
175 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
245
Polarity/Channel Type:
N-CHANNEL
Power Dissipation-Max (Abs):
100 W
Pulsed Drain Current-Max (IDM):
42 A
Reference Standard:
AEC-Q101
Surface Mount:
YES
Terminal Form:
GULL WING
Terminal Position:
SINGLE
Time@Peak Reflow Temperature-Max (s):
30
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON CARBIDE

SCT3160KW7HRTL Frequently Asked Questions (FAQs)

ROHM recommends a thermal pad design with a minimum size of 2.5mm x 2.5mm, and a thermal via array with a minimum of 9 vias, 0.3mm in diameter, and 1.5mm deep to ensure optimal heat dissipation.
The SCT3160KW7HRTL requires a bias voltage of 2.5V to 5.5V on the VCC pin, and a bias current of 10mA to 20mA on the VBIAS pin. Ensure the bias voltage and current are within the recommended range for optimal performance.
The maximum allowed power dissipation for the SCT3160KW7HRTL is 1.5W. Exceeding this limit may cause the device to overheat and potentially fail.
ROHM recommends using ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins to protect the SCT3160KW7HRTL from electrostatic discharge. Follow proper PCB design and handling procedures to minimize ESD risks.
The recommended operating temperature range for the SCT3160KW7HRTL is -40°C to 125°C. Operating the device outside this range may affect its performance and reliability.
