SCT4013DW7TL - ROHM Semiconductor

Description: 750V, 13mΩ, 7-pin SMD, Trench-structure, Silicon-carbide(SiC) power MOSFET

Download SCT4013DW7TL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

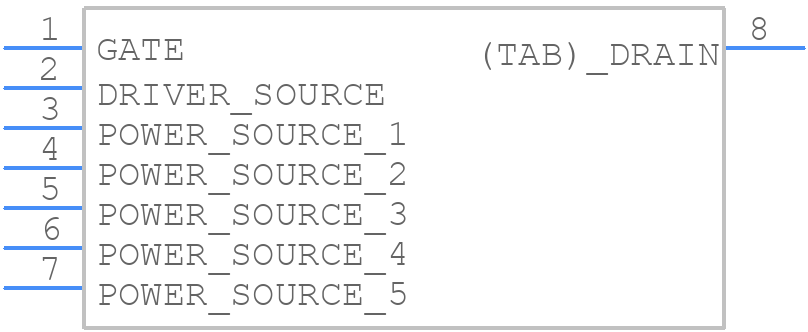

Symbol
SCT4013DW7TL - ROHM Semiconductor - PCB symbol
click to zoom

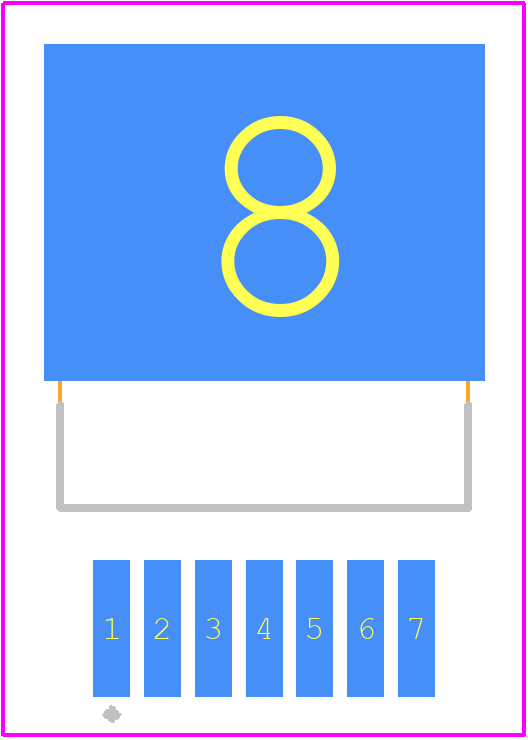

PCB Footprints
SCT4013DW7TL - ROHM Semiconductor PCB footprint - Other - Other - TO-263-7L_Nominal_Height
click to zoom
3D Models
SCT4013DW7TL - ROHM Semiconductor - 3D model - Other - TO-263-7L_Nominal_Height
click to zoom

SCT4013DW7TL Details

  • Manufacturer Part Number:

    SCT4013DW7TL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    27 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    750 V

  • Drain Current-Max (ID):

    98 A

  • Drain-source On Resistance-Max:

    0.0169 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    10 pF

  • JEDEC-95 Code:

    TO-263

  • JESD-30 Code:

    R-PSSO-G7

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    7

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    267 W

  • Pulsed Drain Current-Max (IDM):

    233 A

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE

SCT4013DW7TL Frequently Asked Questions (FAQs)

  • ROHM recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Ensure that the device is operated within the recommended temperature range (-40°C to 150°C). Use a heat sink or thermal interface material to reduce thermal resistance. Also, consider derating the device's power dissipation according to the ambient temperature.
  • ROHM recommends a soldering profile with a peak temperature of 260°C, a dwell time of 10-30 seconds, and a ramp-up rate of 3°C/s. Consult the ROHM soldering guide for more details.
  • Yes, the SCT4013DW7TL is designed to withstand vibrations up to 10G. However, ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress.
  • Handle the device with ESD-protective equipment and follow proper ESD handling procedures. The SCT4013DW7TL has an internal ESD protection diode, but external ESD protection devices may be necessary depending on the application.
