ROHM recommends a thermal pad design with a minimum size of 2.5mm x 2.5mm, and a thermal via array with a minimum of 9 vias, 0.3mm in diameter, and 1.5mm pitch, to ensure optimal thermal performance.
To ensure the device operates within the SOA, monitor the voltage, current, and power dissipation, and ensure they do not exceed the maximum ratings specified in the datasheet. Additionally, consider the thermal characteristics and ensure the device is properly cooled.
The recommended gate resistor value depends on the specific application and switching frequency. As a general guideline, a value between 10Ω to 100Ω is suitable for most applications. However, it's recommended to consult the datasheet and application notes for more specific guidance.
Yes, the SCT4036KW7TL is AEC-Q101 qualified, making it suitable for automotive and high-reliability applications. However, it's essential to ensure the device is used within the specified operating conditions and follows the recommended design guidelines to maintain its reliability.
The SCT4036KW7TL has internal ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing to prevent damage. Additionally, ensure the device is properly connected to a ground plane to dissipate ESD events.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SCT4036KW7TL Overview

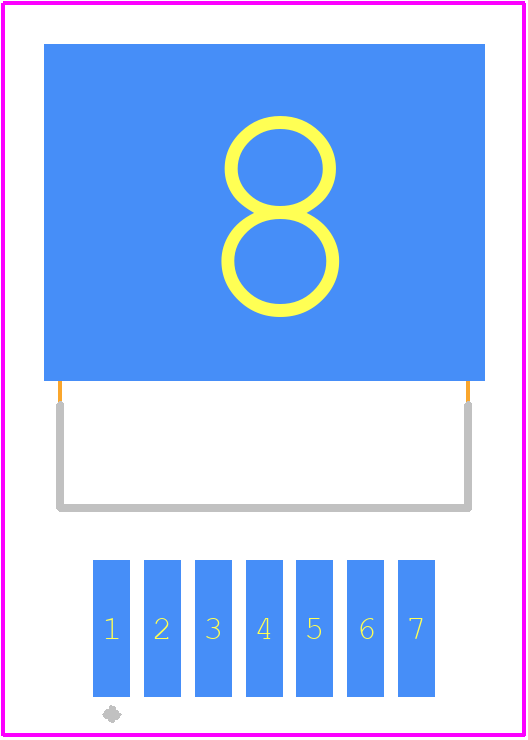

Use the download button to access the SCT4036KW7TL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCT40,
or try a keyword search, such as Power Field-Effect Transistors
