SCT4062KW7TL - ROHM Semiconductor

Description: 1200V, 62mΩ, 7-pin SMD, Trench-structure, Silicon-carbide(SiC) power MOSFET

Download SCT4062KW7TL Model

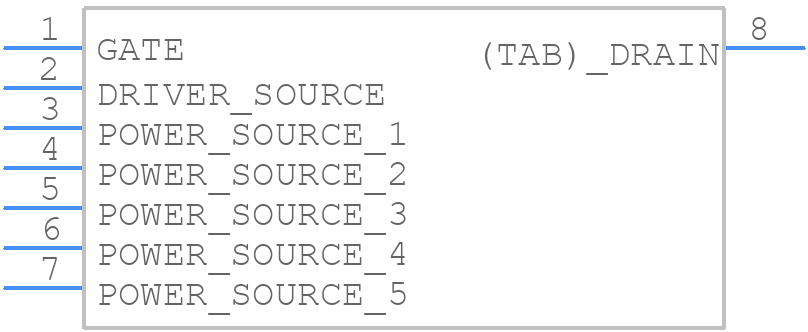

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

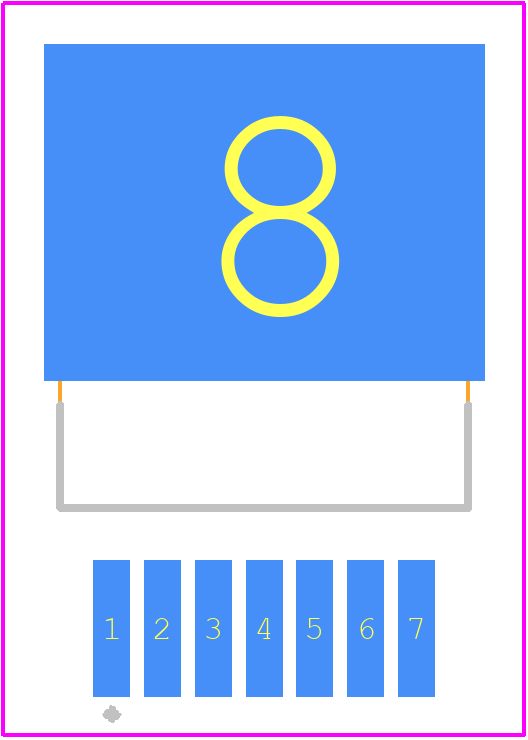

SCT4062KW7TL - ROHM Semiconductor PCB footprint - Other - Other - TO-263-7L_Nominal_Height
click to zoom
3D Models
SCT4062KW7TL - ROHM Semiconductor  - 3D model - Other - TO-263-7L_Nominal_Height
click to zoom

SCT4062KW7TL Details

  • Manufacturer Part Number:

    SCT4062KW7TL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    27 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    6.8

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    1200 V

  • Drain Current-Max (ID):

    24 A

  • Drain-source On Resistance-Max:

    0.081 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    3 pF

  • JEDEC-95 Code:

    TO-263

  • JESD-30 Code:

    R-PSSO-G7

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    7

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    93 W

  • Pulsed Drain Current-Max (IDM):

    52 A

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE

SCT4062KW7TL Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad design with a minimum size of 2.5mm x 2.5mm, and a thermal via array with a minimum of 9 vias, to ensure efficient heat dissipation.
  • To ensure reliability, follow the recommended operating temperature range (up to 150°C), and consider using a heat sink or thermal interface material to reduce junction temperature. Also, ensure proper PCB design, layout, and thermal management.
  • The maximum allowed voltage for the input pins is 5.5V, which is the absolute maximum rating. However, for reliable operation, it's recommended to keep the input voltage within the recommended operating range of 3.3V to 5V.
  • Yes, the SCT4062KW7TL is suitable for high-frequency switching applications up to 100 kHz. However, ensure proper PCB design, layout, and decoupling to minimize noise and ringing.
  • Follow the recommended power sequencing and startup procedures outlined in the datasheet, which include a soft-start circuit and a power-on reset circuit to ensure proper device operation and prevent latch-up.
