SCTX2-93-2W+ Frequently Asked Questions (FAQs)

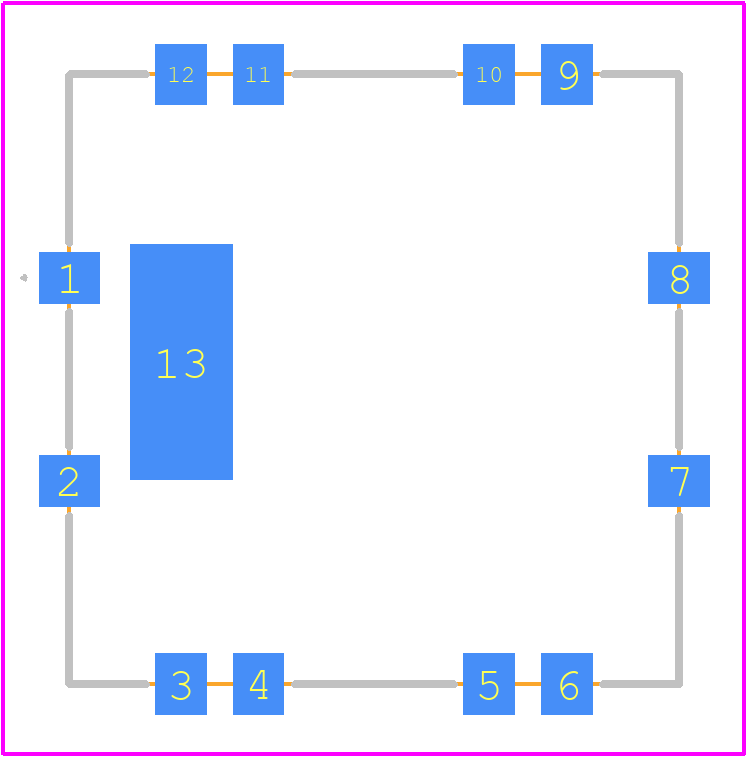

• What is the recommended PCB layout and footprint for the SCTX2-93-2W+?
  Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-014, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
• How do I impedance match the SCTX2-93-2W+ to my system?
  The SCTX2-93-2W+ has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. You can use online impedance matching tools or consult with a RF design expert to determine the optimal matching network for your specific application.
• What is the maximum operating temperature for the SCTX2-93-2W+?
  The maximum operating temperature for the SCTX2-93-2W+ is 85°C. However, it's recommended to derate the power handling by 1 dB for every 10°C above 50°C to ensure reliable operation and prevent thermal damage.
• Can I use the SCTX2-93-2W+ in a high-vibration environment?
  The SCTX2-93-2W+ is designed to meet the requirements of MIL-STD-202, Method 204, for vibration. However, it's recommended to consult with a mechanical engineer to ensure that the PCB and component mounting can withstand the expected vibration levels in your specific application.
• How do I troubleshoot common issues with the SCTX2-93-2W+?
  Common issues with the SCTX2-93-2W+ include overheating, impedance mismatch, and damage from electrostatic discharge (ESD). To troubleshoot, check the PCB layout, impedance matching, and power handling. Use a thermal camera to detect overheating, and ensure that the device is properly grounded to prevent ESD damage.
