SCW05A-09 - Mean Well

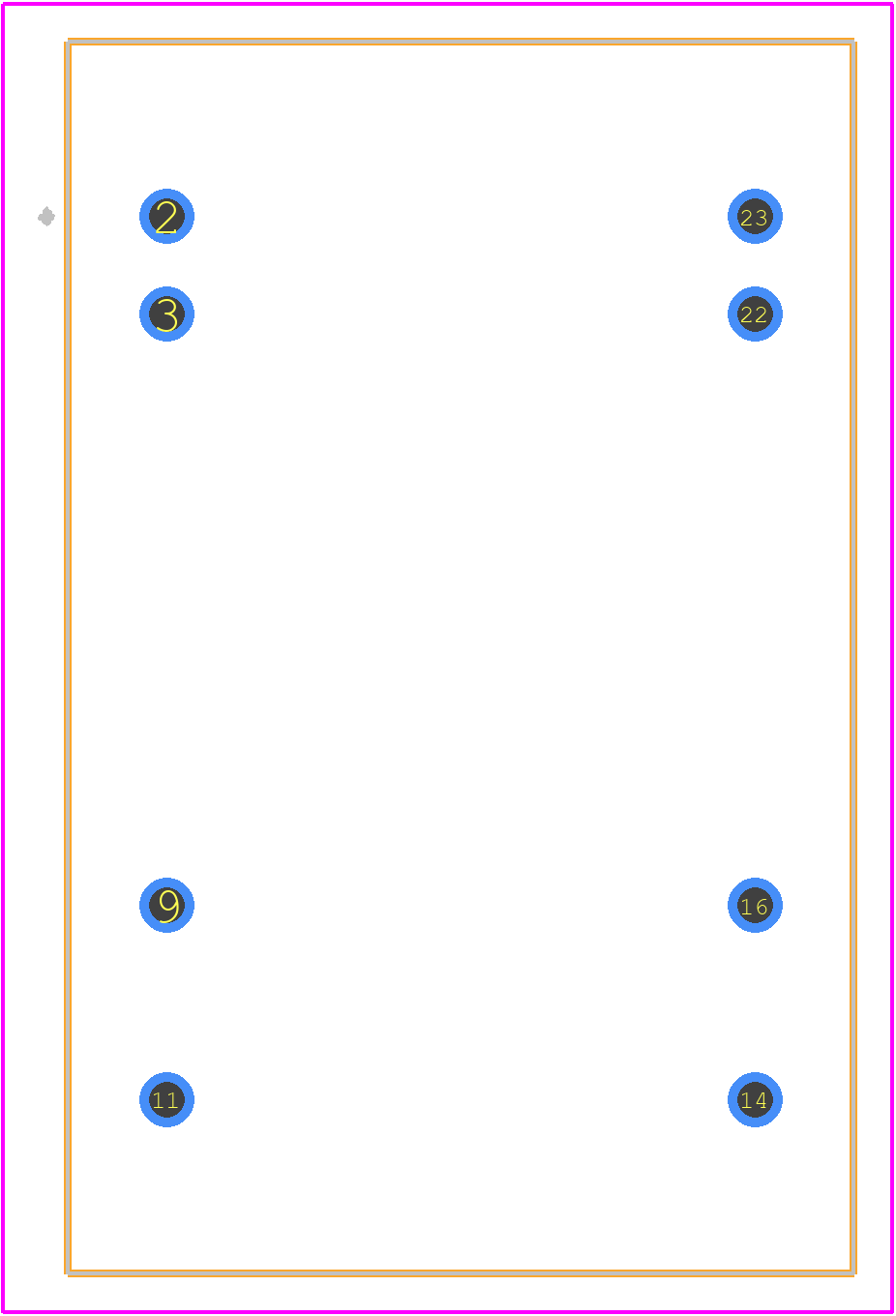

SCW05A-09 Details

• Manufacturer Part Number:

  SCW05A-09

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  PACKAGE-24/8 PIN

• ECCN Code:

  EAR99

• Manufacturer:

  Mean Well

• YTEOL:

  0

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  EAC

• Efficiency (Main Output):

  80%

• Input Voltage-Max:

  18 V

• Input Voltage-Min:

  9 V

• JESD-30 Code:

  R-MDMA-P8

• Length:

  31.8 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  0.5%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  71 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.556 A

• Output Voltage-Max:

  9.18 V

• Output Voltage-Min:

  8.82 V

• Output Voltage-Nom:

  9 V

• Package Body Material:

  METAL

• Package Code:

  DMA

• Package Equivalence Code:

  MODULE,8/24LEAD,0.6

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Protections:

  OVER LOAD, SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.02121 Vrms

• Seated Height-Max:

  12.7 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  PIN/PEG

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Total Power Output-Max:

  5 W

• Trim/Adjustable Output:

  NO

• Width:

  20.3 mm
