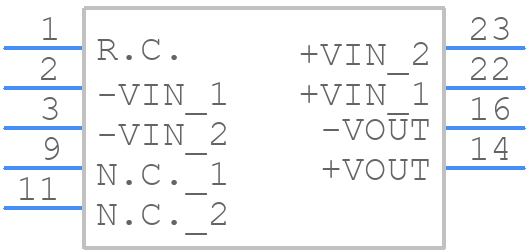

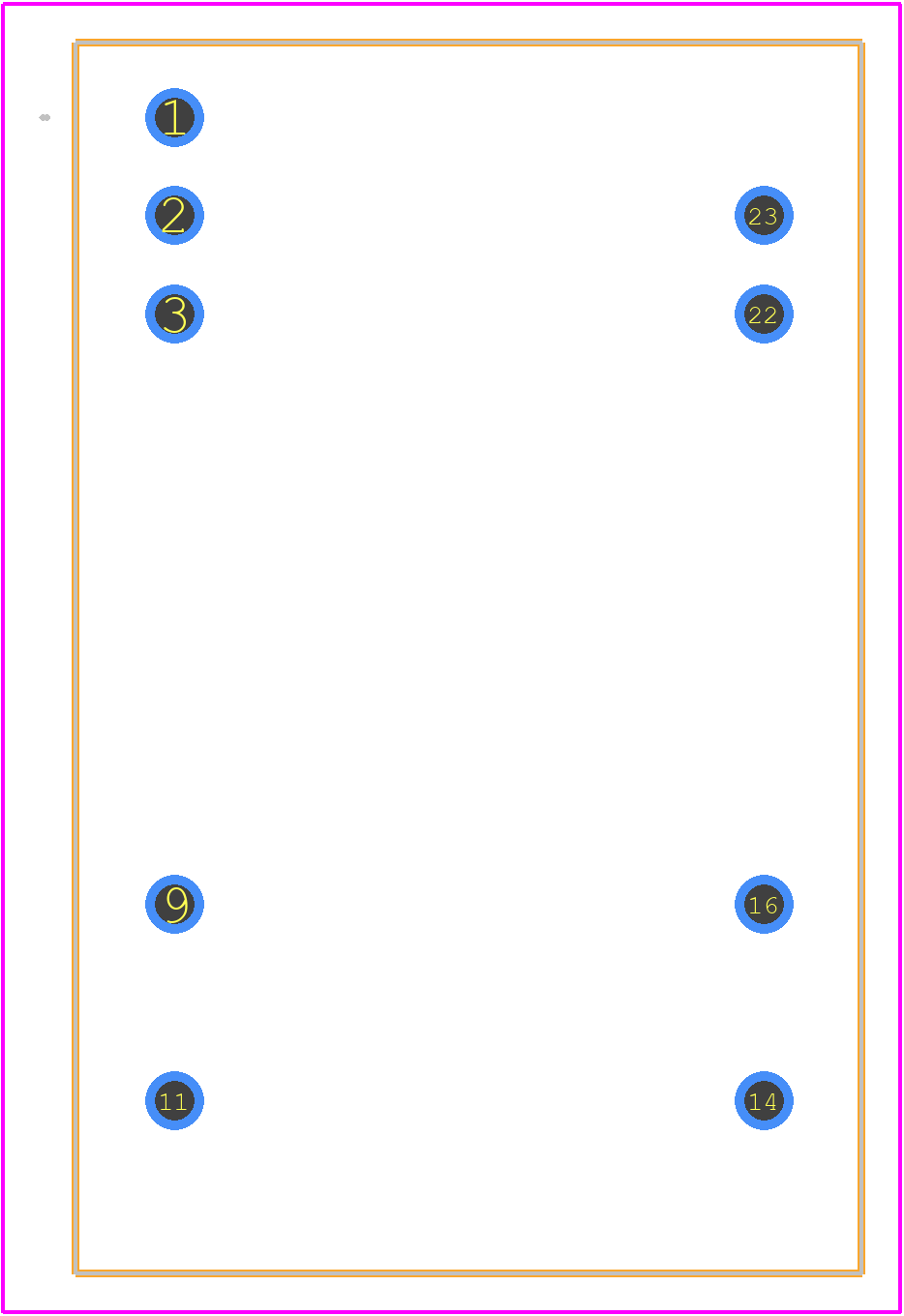

SCW12A-05 - Mean Well

SCW12A-05 Details

• Manufacturer Part Number:

  SCW12A-05

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  DMA,

• Reach Compliance Code:

  Compliant

• ECCN Code:

  EAR99

• Factory Lead Time:

  19 Weeks, 3 Days

• Manufacturer:

  Mean Well

• YTEOL:

  6

• Additional Feature:

  REMOTE ON/OFF

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  EAC

• Efficiency (Main Output):

  82%

• Input Voltage-Max:

  18 V

• Input Voltage-Min:

  9 V

• JESD-30 Code:

  R-MDMA-P9

• Length:

  31.8 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  0.5%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  9

• Operating Temperature-Max:

  71 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  2.4 A

• Output Voltage-Max:

  5.1 V

• Output Voltage-Min:

  4.9 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  METAL

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Protections:

  OVER LOAD; SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.017675 Vrms

• Seated Height-Max:

  12.7 mm

• Surface Mount:

  NO

• Switching Frequency-Max:

  400 kHz

• Technology:

  HYBRID

• Terminal Form:

  PIN/PEG

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Total Power Output-Max:

  12 W

• Trim/Adjustable Output:

  NO

• Width:

  20.3 mm
