SCWN06B-03 - Mean Well

SCWN06B-03 Details

• Manufacturer Part Number:

  SCWN06B-03

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

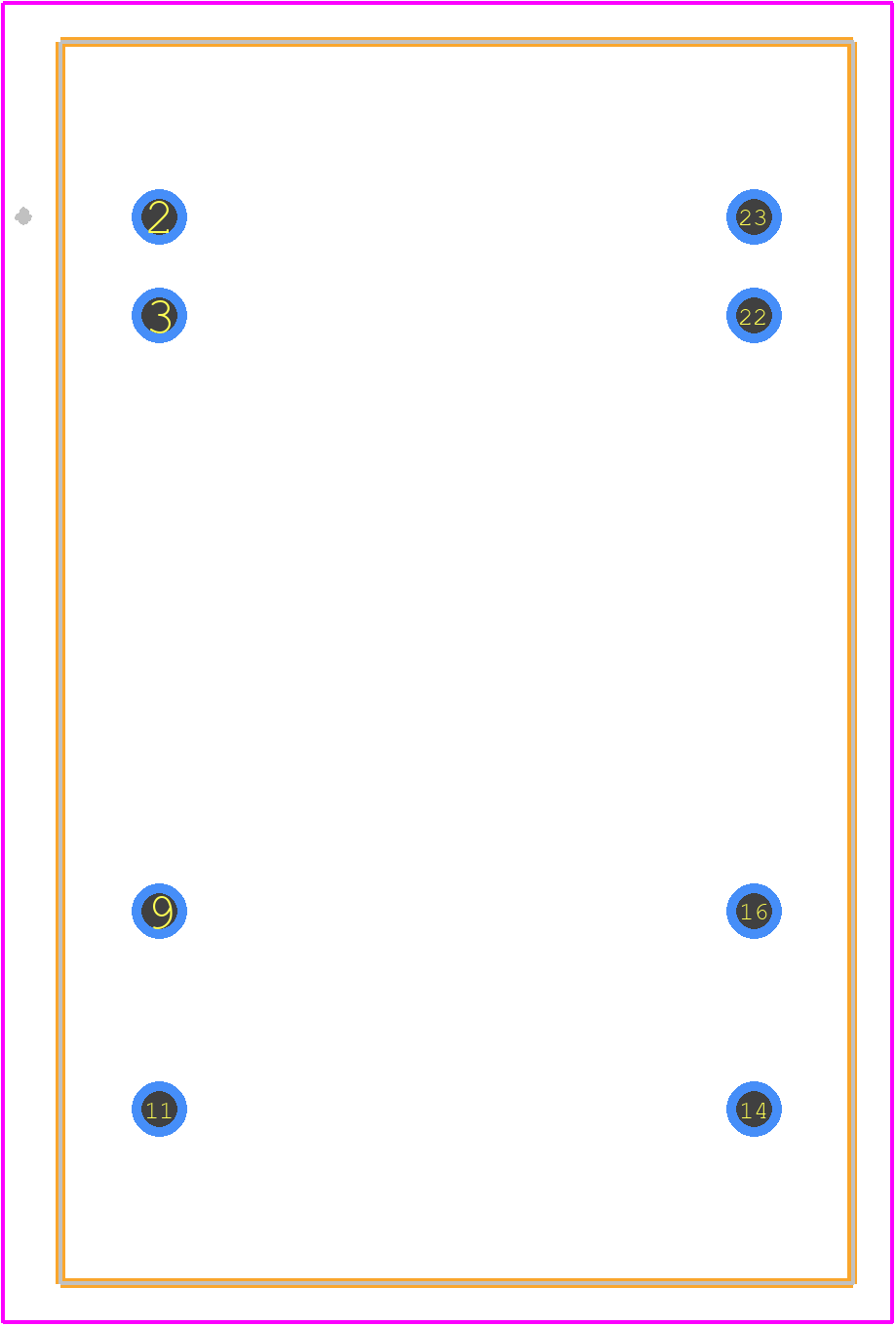

• Package Description:

  DIP-24/8

• ECCN Code:

  EAR99

• Factory Lead Time:

  19 Weeks, 3 Days

• Manufacturer:

  Mean Well

• YTEOL:

  5

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  BS, EAC, EN

• Efficiency (Main Output):

  79%

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  18 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-PDIP-P8

• Length:

  31.8 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  0.5%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  90 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  1.2 A

• Output Voltage-Max:

  3.3495 V

• Output Voltage-Min:

  3.2505 V

• Output Voltage-Nom:

  3.3 V

• Package Body Material:

  PLASTIC

• Package Code:

  DIP

• Package Equivalence Code:

  DIP8/24,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Protections:

  OVER LOAD, SHORT CIRCUIT, UNDER VOLTAGE

• Ripple Voltage (Main Out):

  0.017675 Vrms

• Seated Height-Max:

  10.7 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  PIN/PEG

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Total Power Output-Max:

  6 W

• Trim/Adjustable Output:

  NO

• Width:

  20.3 mm
