Part Image

SD-128-G-2 - SAMTEC

Description: Conn Socket Strip SKT 56 POS 2.54mm Solder ST Top Entry Thru-Hole Tube

Download SD-128-G-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SD-128-G-2 - SAMTEC - PCB symbol
click to zoom

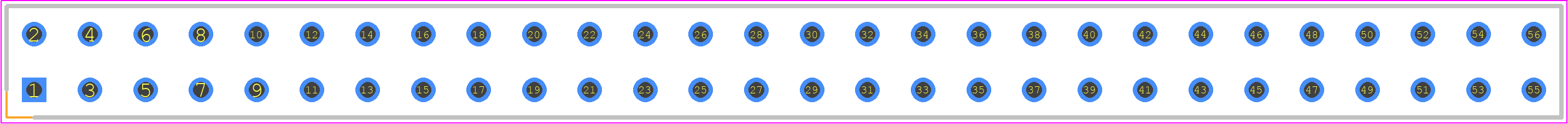

PCB Footprints
SD-128-G-2 - SAMTEC PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - SD-128-G-2
click to zoom
3D Models
SD-128-G-2 - SAMTEC - 3D model - Header, Receptacle - Straight PTH Box - SD-128-G-2
click to zoom

SD-128-G-2 Details

  • Manufacturer Part Number:

    SD-128-G-2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    France, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.1

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (50)

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    BERYLLIUM COPPER

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    56

SD-128-G-2 Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the guides first, followed by the contacts. This ensures proper alignment and prevents damage to the connector.
  • Handle the connector by the edges or the shroud to prevent damage to the contacts or guides. Avoid touching the contacts or guides to prevent contamination and ensure reliable connections.
  • The maximum operating temperature range for the SD-128-G-2 connector is -55°C to 125°C. However, it's essential to check the specific temperature rating for your application, as it may vary depending on the environment and usage.
  • Yes, the SD-128-G-2 connector is designed to withstand high-vibration environments. However, it's crucial to follow proper mounting and assembly procedures to ensure the connector remains secure and functional.
  • The recommended torque value for the SD-128-G-2 connector's screws is 0.5-1.5 in-lbs (0.056-0.169 Nm). It's essential to follow the recommended torque value to prevent damage to the connector or the PCB.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SD-128-G-2 Overview

Use the download button to access the SD-128-G-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SD-12, or try a keyword search, such as Headers and Edge Type Connectors
