SD-14550DX-102 - Data Device Corporation

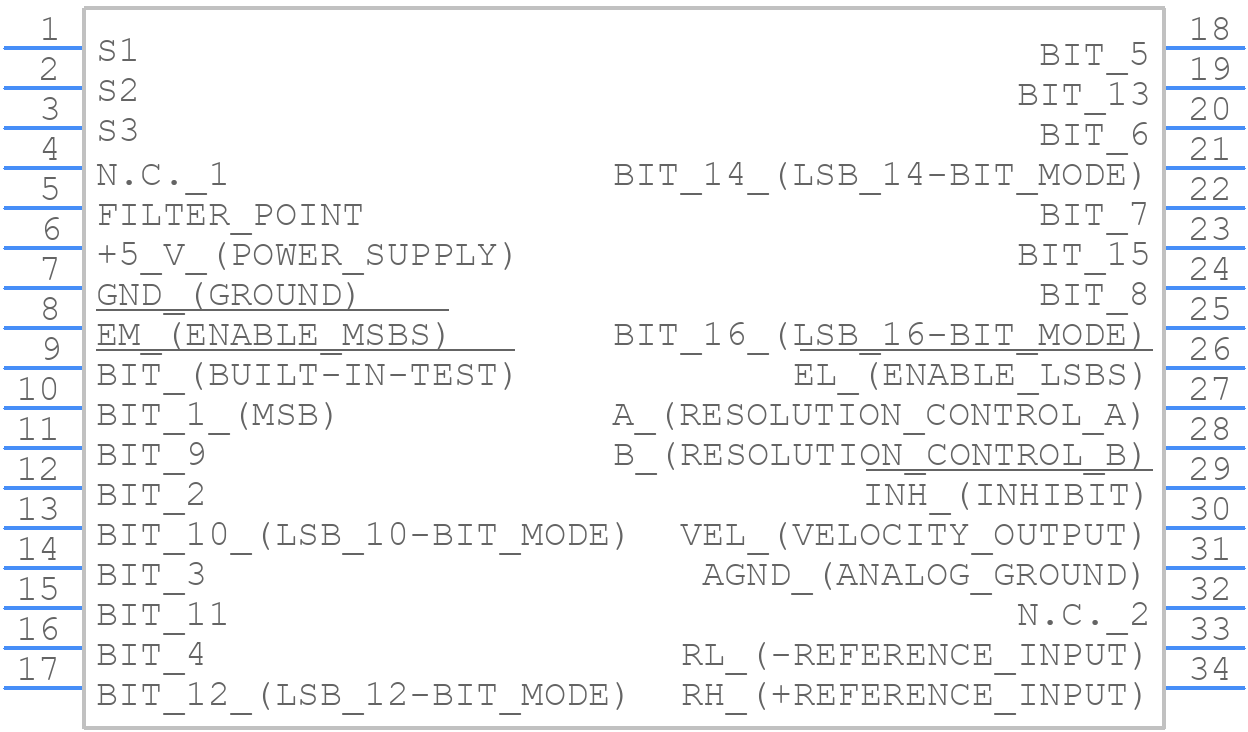

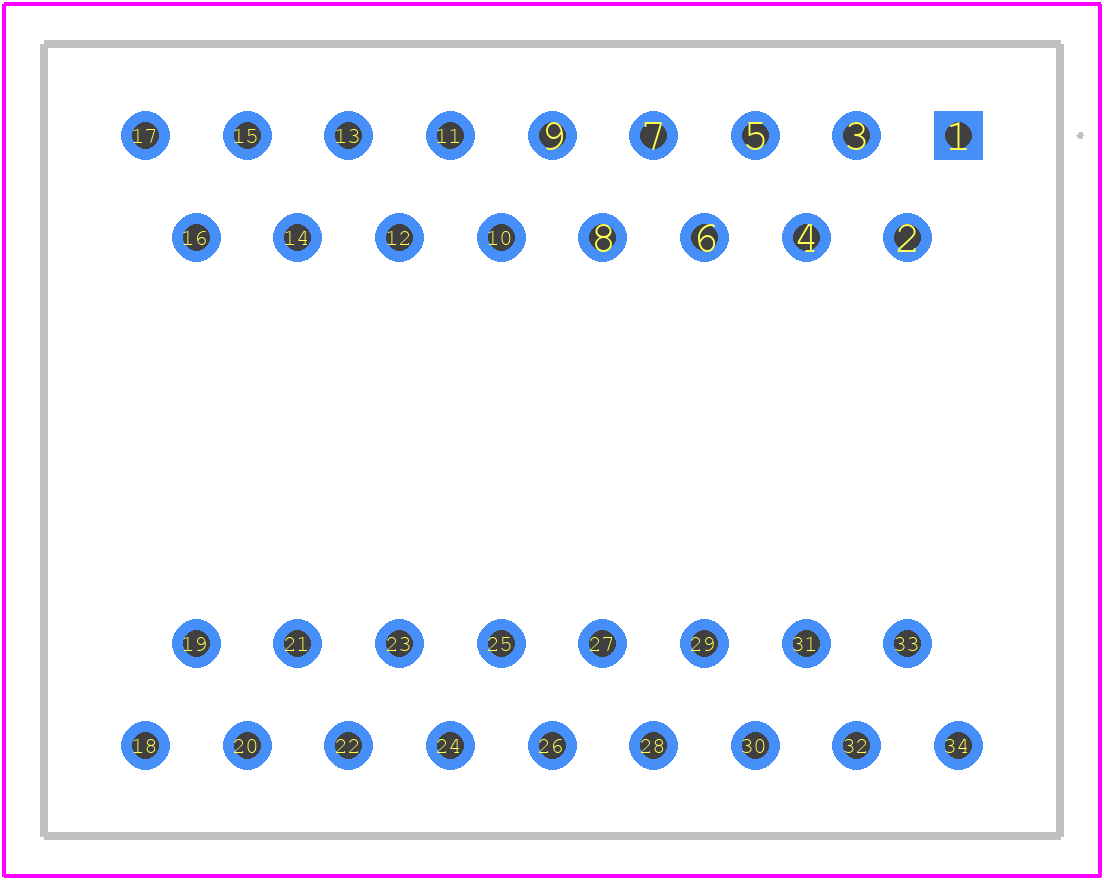

SD-14550DX-102 Details

• Manufacturer Part Number:

  SD-14550DX-102

• Pbfree Code:

  No

• Part Life Cycle Code:

  Active

• Part Package Code:

  QIP

• Pin Count:

  34

• Country Of Origin:

  Taiwan, USA

• HTS Code:

  8542.39.00.50

• Manufacturer:

  Data Device Corporation

• YTEOL:

  4

• Additional Feature:

  LG-MAX; WD-MAX

• Analog Input Voltage-Max:

  30 V

• Angular Accuracy-Max:

  4 arc min

• Converter Type:

  SYNCHRO OR RESOLVER TO DIGITAL CONVERTER

• JESD-30 Code:

  R-CQIP-P34

• JESD-609 Code:

  e0

• Length:

  25.4 mm

• Number of Bits:

  16

• Number of Functions:

  1

• Number of Terminals:

  34

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

• Package Code:

  QIP

• Package Equivalence Code:

  QUIP34B,.4/.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  6.6 mm

• Settling Time-Max:

  360 µs

• Signal/Output Frequency:

  5000 Hz

• Supply Current-Max:

  34 mA

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  HYBRID

• Temperature Grade:

  MILITARY

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  PIN/PEG

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  QUAD

• Tracking Rate-Max:

  2.5 rps

• Width:

  19.81 mm
