- Part Number SD-1660A(09)
- Manufacturer Hirose
- Pin Count 62
- Part Category Connector
- Package Category Other

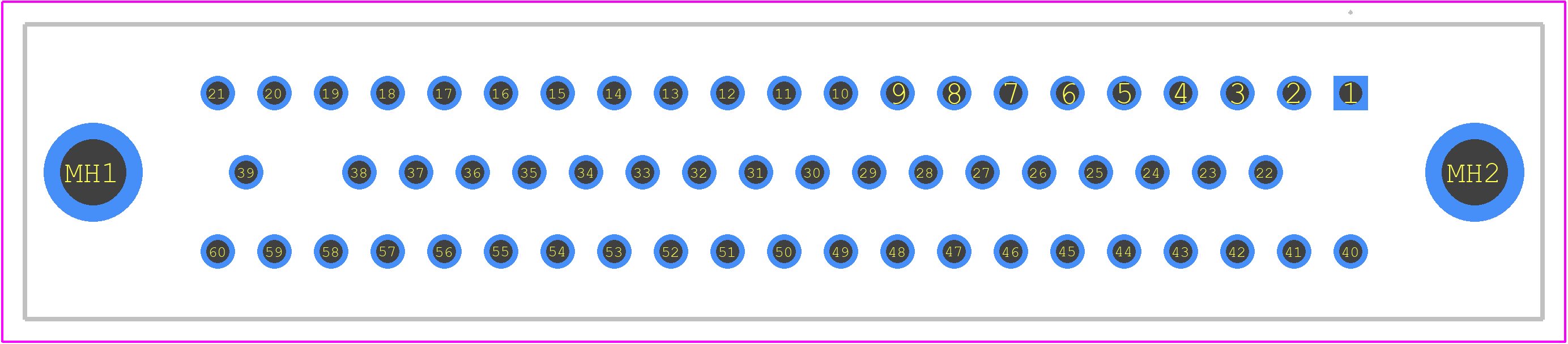

- Footprint Name Other - SD-1660A(09)-1
- Released Date Sep 2, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SD-1660A(09) Details
-
Manufacturer Part Number:
SD-1660A(09)
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
ROHS COMPLIANT
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
Hirose Electric Co Ltd
-
YTEOL:
0
-
Board Mounting Option:
HOLE .112-.124
-
Body Breadth:
0.512 inch
-
Body Depth:
0.236 inch
SD-1660A(09) Frequently Asked Questions (FAQs)
-
The recommended mating sequence is to mate the guide pins first, followed by the signal contacts. This ensures proper alignment and prevents damage to the connector.
-
Handle the guide pins with care, as they are fragile and can be easily damaged. Use a soft, dry cloth or a specialized tool to guide the pins during assembly, and avoid applying excessive force or pressure.
-
The maximum cable bending radius for the SD-1660A(09) connector is typically around 5-10 times the outer diameter of the cable. However, it's recommended to consult the specific cable manufacturer's guidelines for the recommended bending radius.
-
Yes, the SD-1660A(09) connector is designed to withstand high-vibration and high-shock environments. However, it's essential to follow proper mounting and assembly procedures to ensure the connector's reliability and performance.
-
The operating temperature range for the SD-1660A(09) connector is typically -40°C to +85°C. However, it's recommended to consult the specific datasheet or manufacturer's guidelines for the exact operating temperature range.
Trust Checks
Community Provided
System Verified
Community Approved
SD-1660A(09) Overview
Use the download button to access the SD-1660A(09) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SD-16,
or try a keyword search, such as Other Rectangular Connectors
