SD-2030TB - Nidec Copal

Description: Coded Rotary Switches smd dip rotary code decimal, comp code, top adj. gull wing, - slot

Download SD-2030TB Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SD-2030TB model

Email notifications will be applied after download.

Send part feedback

Symbol

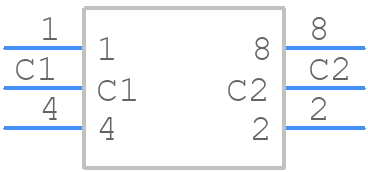

SD-2030TB - Nidec Copal - PCB symbol

PCB Footprints

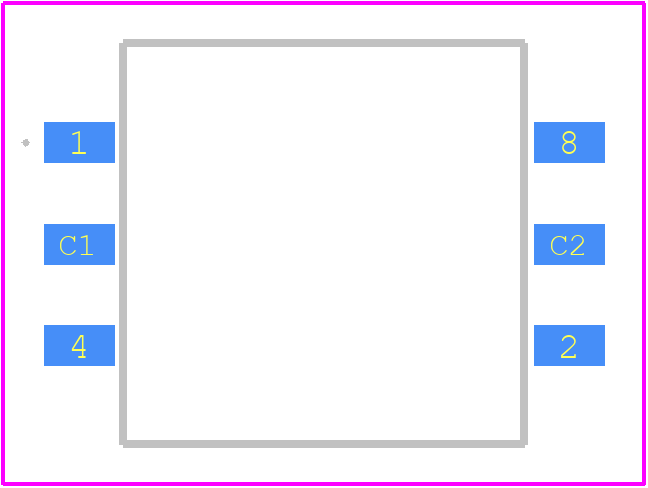

SD-2030TB - Nidec Copal PCB footprint - Other - Other - SD-2030TB-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for SD-2030TB
Part Number SD-2030TB
Manufacturer Nidec Copal
Pin Count 6
Part Category Switch
Package Category Other
Footprint Name Other - SD-2030TB-1
Released Date Jul 17, 2024
Last Modified Date Jul 17, 2024 9:26 AM UTC
Pinout / Pin List Click Here (Member Only)

SD-2030TB Details

Manufacturer Part Number:
SD-2030TB
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Factory Lead Time:
15 Weeks
Manufacturer:
Nidec Copal Electronics Corporation
JESD-609 Code:
e4
Switch Type:
ROTARY CODED SWITCH
Terminal Finish:
Gold (Au)

Trust Checks

Community Provided

System Verified

Community Approved

SD-2030TB Overview

Use the download button to access the SD-2030TB schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SD-20, or try a keyword search, such as Rotary Switches
