- Part Number SD-50BV
- Manufacturer Same Sky
- Pin Count 5
- Part Category Connector
- Package Category Other
- Footprint Name Other - SD-50BV
- Released Date Dec 8, 2018
- Last Modified Date May 20, 2026 3:53 PM UTC
- Pinout / Pin List Click Here (Member Only)
SD-50BV Details
-
Manufacturer Part Number:
SD-50BV
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.20
-
Manufacturer:
Same Sky
-
Body Depth:
0.62 inch
-
Connector Type:
DIN CONNECTOR
-
Contact Finish Mating:
NOT APPLICABLE
-
Contact Material:
NOT APPLICABLE
-
Contact Resistance:
30 mΩ
SD-50BV Frequently Asked Questions (FAQs)
-
A good PCB layout for the SD-50BV should ensure that the input and output pins are separated by a sufficient distance to minimize electromagnetic interference (EMI). Additionally, the PCB should have a solid ground plane to reduce noise and ensure signal integrity.
-
To ensure proper decoupling, place a 10-100 nF ceramic capacitor between the input pin and ground, and another between the output pin and ground. This will help filter out high-frequency noise and prevent oscillations.
-
The SD-50BV is rated for operation from -40°C to +85°C. However, it's recommended to derate the output voltage and current at higher temperatures to ensure reliable operation.
-
While the SD-50BV is a high-quality component, it may not meet the specific requirements for high-reliability or aerospace applications. It's recommended to consult with CUI Devices or a qualified engineer to determine the suitability of the SD-50BV for such applications.
-
To troubleshoot issues with the SD-50BV, start by verifying the input voltage and current, and ensuring that the component is properly decoupled. Check for any signs of overheating, and verify that the output voltage is within the specified range. If issues persist, consult the datasheet or contact CUI Devices for further assistance.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
SD-50BV Overview

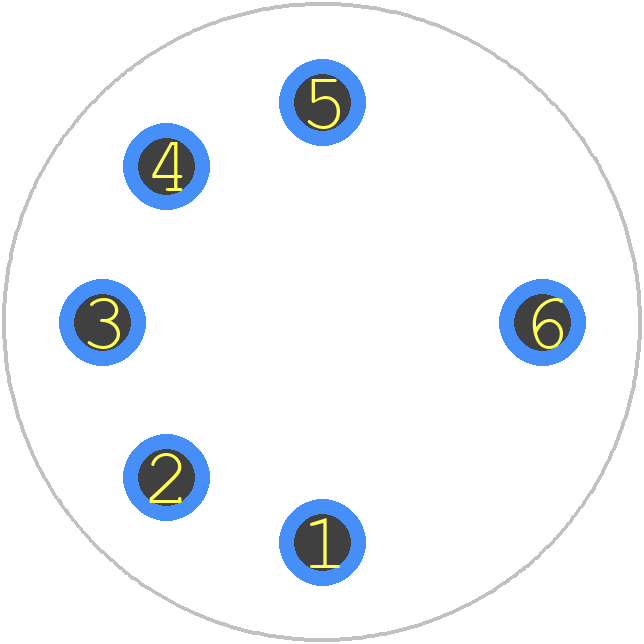

Use the download button to access the SD-50BV schematic symbol, PCB footprint, and 3D model.
