The recommended operating temperature range for the SD12-LPR-V-T/R is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range for extended periods.
To ensure proper soldering, follow the recommended soldering profile and temperature guidelines provided in the datasheet. Additionally, use a solder with a melting point compatible with the device's lead-free finish, and avoid applying excessive heat or mechanical stress during the soldering process.
The maximum allowable voltage for the SD12-LPR-V-T/R is 12V, as specified in the datasheet. Exceeding this voltage may cause permanent damage to the device or affect its reliability.
The SD12-LPR-V-T/R is designed for low-frequency applications, and its performance may degrade at high frequencies. If you need to use it in a high-frequency application, consult with Diptronics Manufacturing Inc or a qualified engineer to determine its suitability and potential modifications required.
To prevent electrostatic discharge (ESD) damage, handle the SD12-LPR-V-T/R with ESD-protective equipment, such as wrist straps, mats, or bags. Ensure that your workspace and tools are also ESD-protected, and follow proper handling and storage procedures.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SD12-LPR-V-T/R Overview

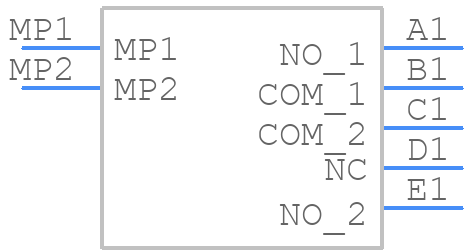

Use the download button to access the SD12-LPR-V-T/R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SD12-,
or try a keyword search, such as Slide Switches
