SD1602H - Sunlike Display

Description: SD1602H is a 16x2 character LCD display run by 16 characters x 2 lines, and has various color options of LCD, LED backlight.

Download SD1602H Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SD1602H model

Email notifications will be applied after download.

Send part feedback

Symbol

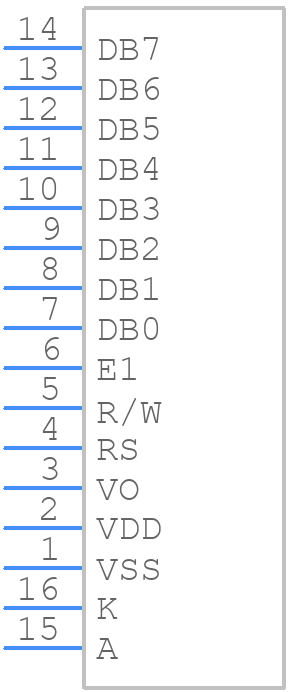

SD1602H - Sunlike Display - PCB symbol

PCB Footprints

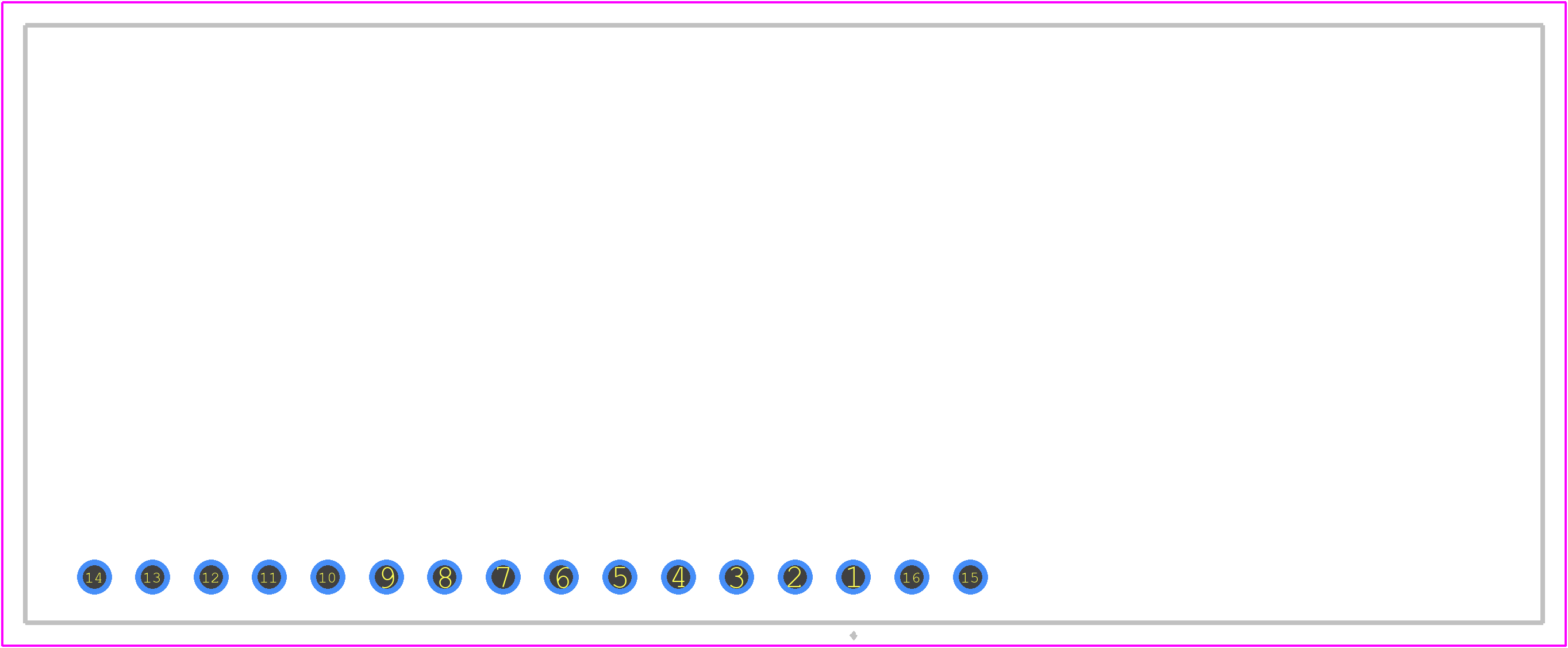

SD1602H - Sunlike Display PCB footprint - Other - Other - SD1602H-1

3D Models

SD1602H - Sunlike Display - 3D model - Other - SD1602H-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for SD1602H
Part Number SD1602H
Manufacturer Sunlike Display
Pin Count 16
Part Category Display
Package Category Other
Footprint Name Other - SD1602H-1
Released Date Feb 18, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SD1602H Details

Manufacturer Part Number:
SD1602H
Part Life Cycle Code:
Contact Manufacturer
Manufacturer:
Sunlike Display Tech Corp
Character Font Type:
5x7 + CSR
Characters Per Row:
16
Display Height:
5.56 mm
Overall Depth:
8.5 mm
Overall Height:
26 mm
Overall Length:
66 mm
Rows Per Display:
2
Supply Voltage-Nom:
5 V
Viewing Area Height:
16 mm
