SD250-4L - COILCRAFT

Description: Base/Gate Driver Transformers. • Lower cost than toroidal equivalents • Frequency range of 10 – 250 kHz and up • Industry standard pin centers • 3750 Vrms, one minute isolation (hipot) between primary and secondary windings; 1500 Vrms, one minute between secondaries • UL1446 Class B (130°C) Insulation System (UL File E83628)

Download SD250-4L Model

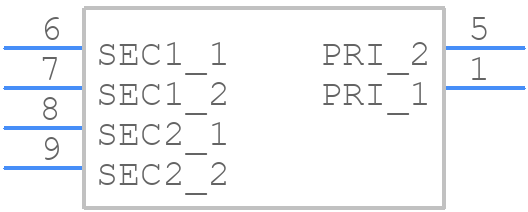

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

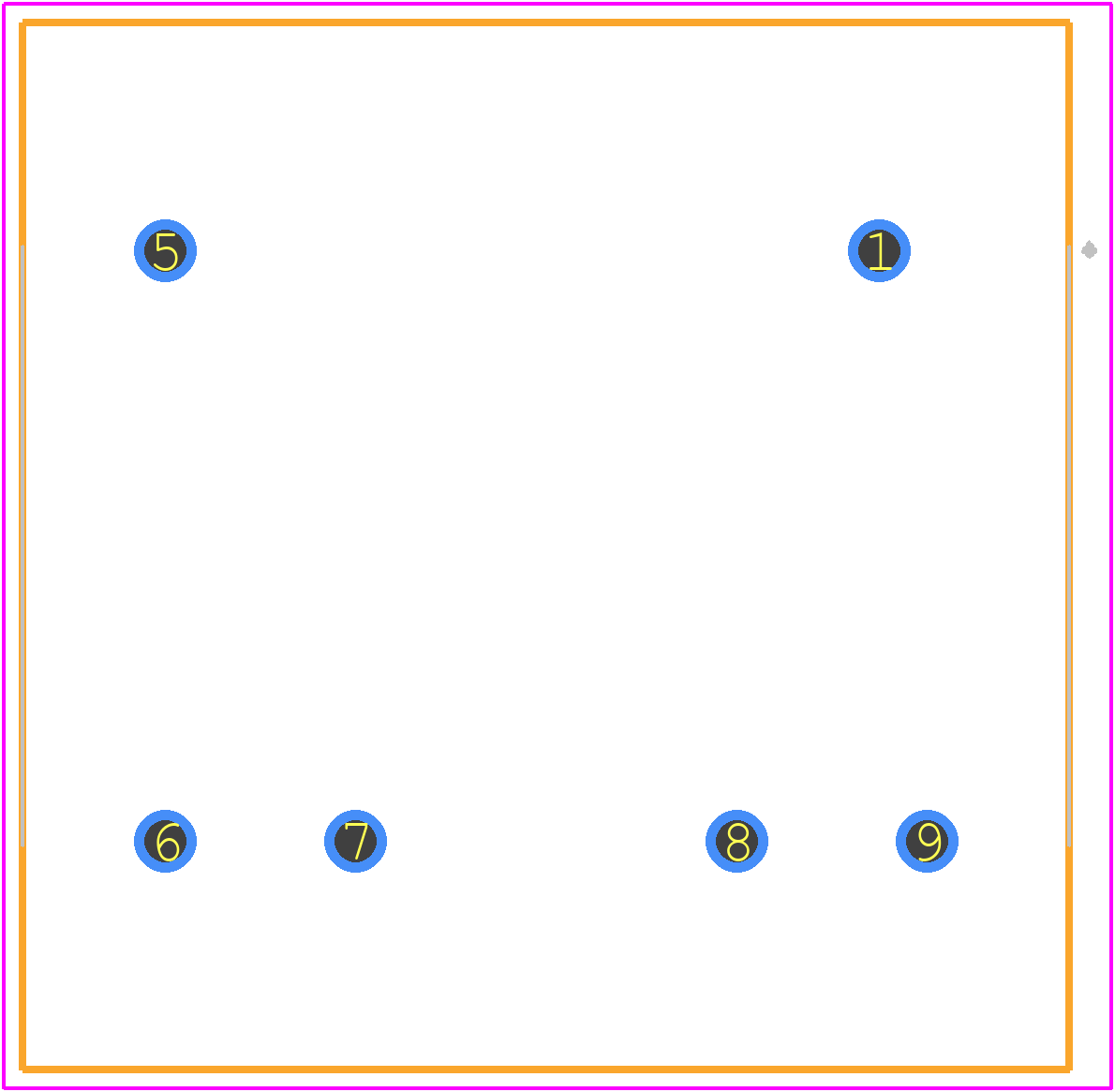

SD250-4L - COILCRAFT PCB footprint - Other - Other - SD250-4L-1
click to zoom
3D Models
SD250-4L - COILCRAFT  - 3D model - Other - SD250-4L-1
click to zoom

SD250-4L Details

  • Manufacturer Part Number:

    SD250-4L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    5.95

  • Additional Feature:

    BREADTH DIM. INCLUDE TERMINAL ALSO

  • Application:

    BASE/GATE DRIVE

  • Approvals:

    UL; IEC; CSA; VDE

  • ET Product-Min:

    375 V-us

  • Height:

    24.13 mm

  • Isolation Voltage:

    3750 V

  • Length:

    27.94 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TRAY

  • Primary Inductance:

    1500 µH

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Silver (Sn/Ag) - Matte Tin (Sn)

  • Transformer Type:

    PULSE TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:1.5:1.5

  • Width:

    27.94 mm

SD250-4L Frequently Asked Questions (FAQs)

  • Coilcraft provides a recommended PCB land pattern in their datasheet, which includes a pad layout and dimensions for optimal performance and assembly.
  • To handle the high current rating, ensure your PCB design includes adequate copper thickness, width, and spacing to minimize resistance and thermal issues. Also, consider using multiple vias to connect the inductor pads to internal copper layers or planes.
  • The SD250-4L operates from -40°C to +125°C. As temperature increases, the inductor's inductance and Q factor may decrease, affecting performance. Ensure your design considers these temperature-related effects and provides adequate thermal management.
  • Yes, the SD250-4L is suitable for high-frequency applications up to several hundred kHz. However, be aware that core losses and skin effect may impact performance at very high frequencies. Consult Coilcraft's application notes and simulation tools to ensure optimal design.
  • To select the correct inductor value, consider factors such as the target inductance, current rating, and operating frequency. Use Coilcraft's online tools, such as their Inductor Selection Guide, or consult with their application engineers to determine the optimal inductor value for your design.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SD250-4L Overview

Use the download button to access the SD250-4L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SD250, or try a keyword search, such as Pulse/Datacom Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
