SD3220S040S3R0 - Kyocera AVX

Description: Schottky Barrier Rectifier Diode

Download SD3220S040S3R0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SD3220S040S3R0 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

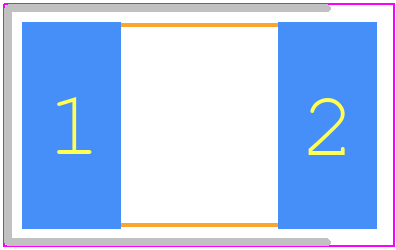

SD3220S040S3R0 - Kyocera AVX PCB footprint - Diodes Chip - Diodes Chip - case code 3220
click to zoom
3D Models
SD3220S040S3R0 - Kyocera AVX - 3D model - Diodes Chip - case code 3220
click to zoom

SD3220S040S3R0 Details

  • Manufacturer Part Number:

    SD3220S040S3R0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.12

  • Additional Feature:

    LOW POWER LOSS

  • Application:

    EFFICIENCY

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.5 V

  • JEDEC-95 Code:

    DO-214AB

  • JESD-30 Code:

    R-PDSO-N2

  • Non-rep Pk Forward Current-Max:

    100 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Rep Pk Reverse Voltage-Max:

    40 V

  • Reverse Current-Max:

    500 µA

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

SD3220S040S3R0 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature profile for the SD3220S040S3R0 capacitor is a peak temperature of 260°C for 10-30 seconds, with a ramp-up rate of 3°C/second and a ramp-down rate of 6°C/second.
  • Yes, the SD3220S040S3R0 capacitor is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 60068-2-6, with a vibration frequency range of 10-2000 Hz and an acceleration of 10 G.
  • The SD3220S040S3R0 capacitor has a maximum operating temperature of 125°C, making it suitable for use in high-temperature applications. However, the capacitance and ESR may vary with temperature, so it's essential to consult the datasheet for specific temperature characteristics.
  • The recommended land pattern for the SD3220S040S3R0 capacitor is a rectangular pad with a size of 3.2 mm x 2.0 mm, with a solder mask clearance of 0.2 mm. It's essential to follow the recommended land pattern to ensure reliable soldering and prevent defects.
  • The SD3220S040S3R0 capacitor meets the moisture sensitivity level (MSL) of 3, which means it can withstand a humid environment with a relative humidity of up to 90% at 30°C. However, it's essential to follow the recommended storage and handling procedures to prevent moisture absorption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SD3220S040S3R0 Overview

Use the download button to access the SD3220S040S3R0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SD322, or try a keyword search, such as Rectifier Diodes
