Part Image

SD4-4-B - Same Sky

Description: SD 4.0 Card Connectors, 19 Contacts, Connector, Push In, Pull Out, Surface Mount, 3.13 mm Height Above Board, Gold Flash

Download SD4-4-B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

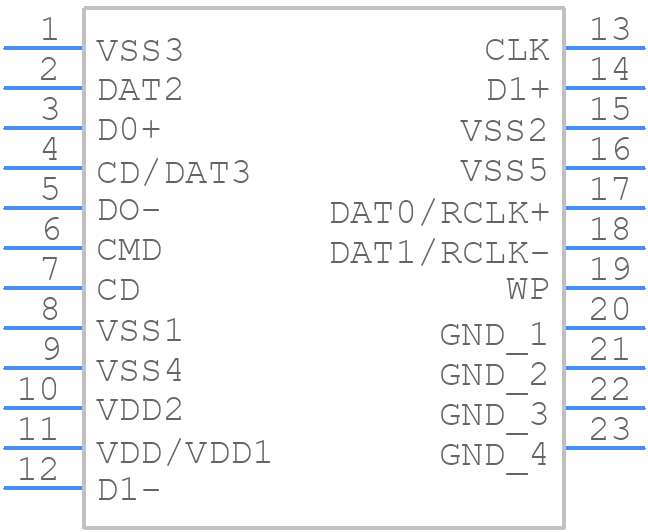

Symbol
SD4-4-B - Same Sky - PCB symbol
click to zoom

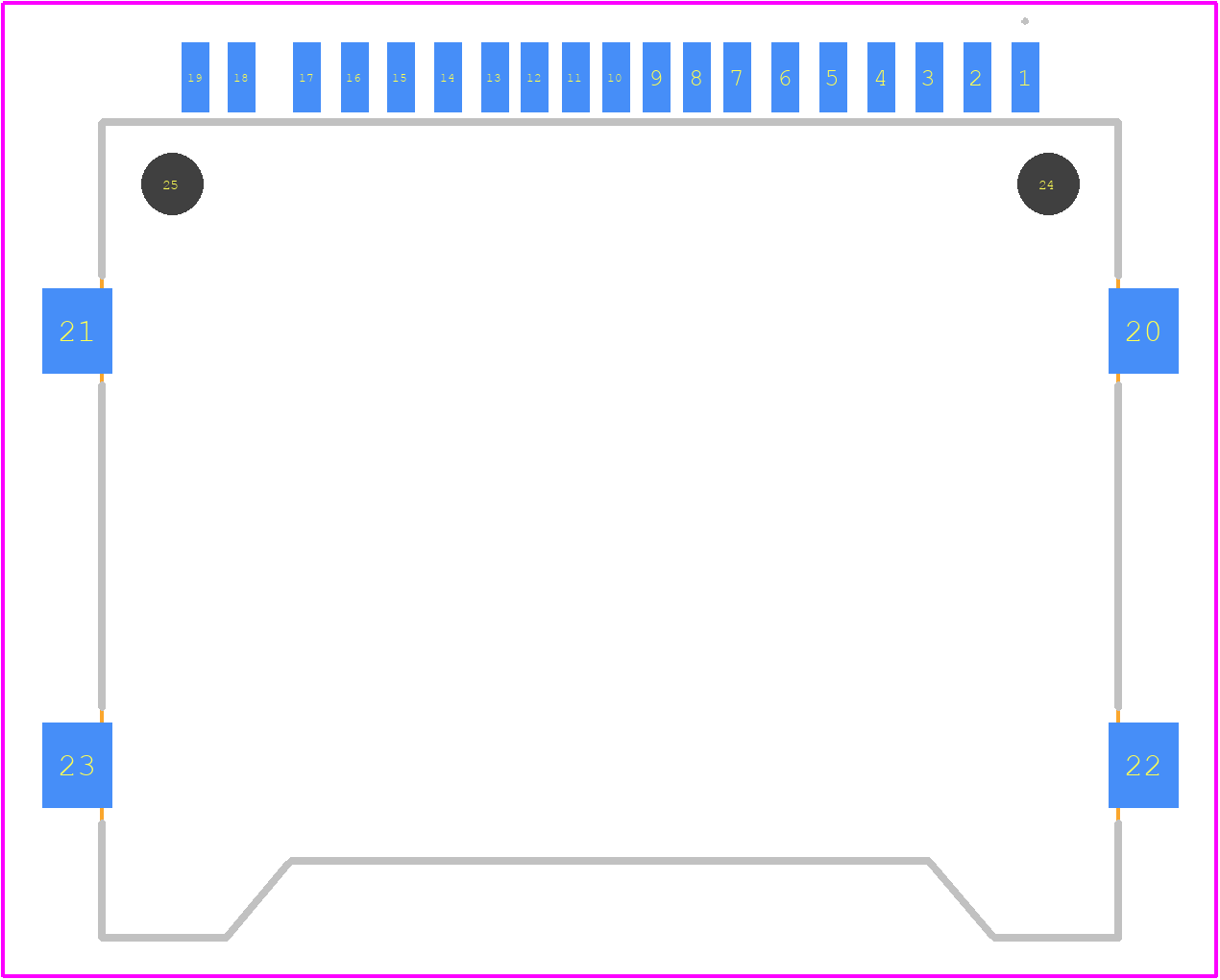

PCB Footprints
SD4-4-B - Same Sky PCB footprint - Other - Other - SD4-4-B-1
click to zoom
3D Models
SD4-4-B - Same Sky - 3D model - Other - SD4-4-B-1
click to zoom

SD4-4-B Details

  • Manufacturer Part Number:

    SD4-4-B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Same Sky

  • Connector Type:

    PCB CONNECTOR

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SD4-4-B Overview

Use the download button to access the SD4-4-B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SD4-4, or try a keyword search, such as Headers and Edge Type Connectors

About Same Sky

Tracing our roots back to 1989 just outside of Portland, Oregon, Same Sky® (formerly CUI Devices) is an electronic components manufacturer dedicated to nurturing the spirit of innovation by caring more than is expected, embracing evolution, taking a holistic approach, and having fun along the away. We specialize in an ever-expanding range of product technologies, including audio, interconnect, motion, relay, sensor, switch and thermal management solutions.
