SDA10H150D - Summit Electronics

Description: 10W 15V DC/DC Converter,Input Voltage [VDC] 110 ,170[VDC] max,Output Current mA 667,Efficiency 84,Capacitive Load [uF] 330,-40 ~ +85°C

Download SDA10H150D Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SDA10H150D model

Email notifications will be applied after download.

Send part feedback

Symbol

SDA10H150D - Summit Electronics - PCB symbol

PCB Footprints

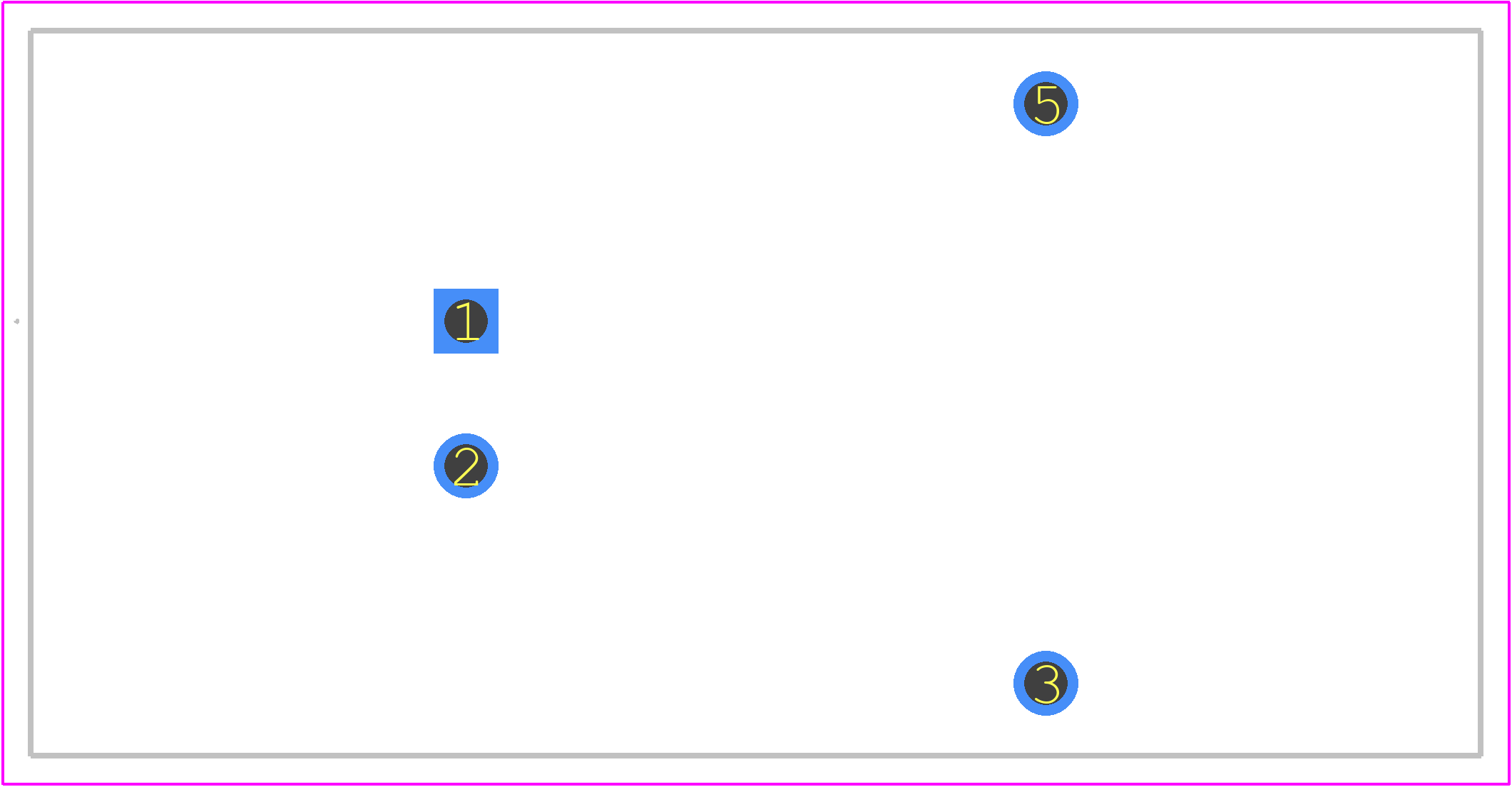

SDA10H150D - Summit Electronics PCB footprint - Other - Other - DIP-5_2026-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for SDA10H150D
Part Number SDA10H150D
Manufacturer Summit Electronics
Pin Count 4
Part Category Power Supply
Package Category Other
Footprint Name Other - DIP-5_2026-2
Released Date May 12, 2026
Last Modified Date May 12, 2026 4:43 AM UTC
Pinout / Pin List Click Here (Member Only)

SDA10H150D Details
