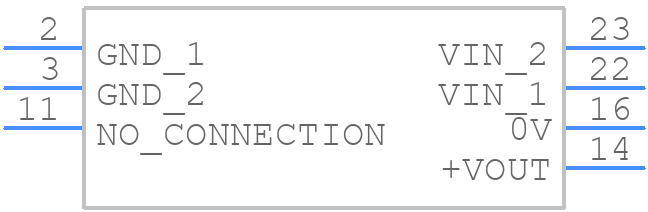

Symbol

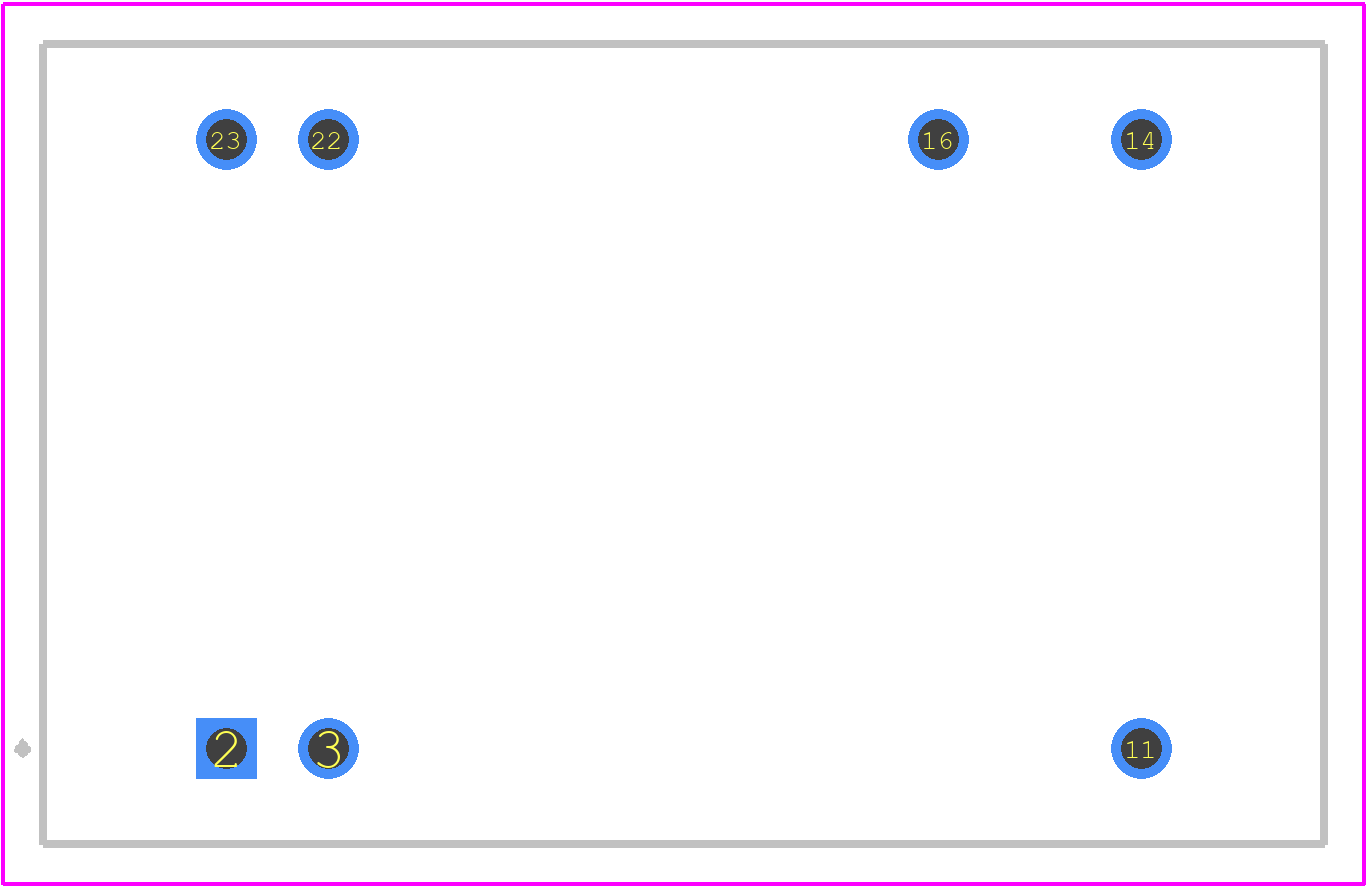

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SDC03P2424
- Part Number SDC03P2424
- Manufacturer Summit Electronics
- Pin Count 7
- Part Category Power Supply
- Package Category Other
- Footprint Name Other - SDC03P
- Released Date May 8, 2026
- Last Modified Date May 8, 2026 9:39 AM UTC
- Pinout / Pin List Click Here (Member Only)
SDC03P2424 Details
-
Manufacturer Part Number:
SDC03P2424
-
Manufacturer:
(Of No Interest)
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
SDC03P2424 Overview
Use the download button to access the SDC03P2424 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SDC03,
or try a keyword search, such as Headers and Edge Type Connectors
