SDCMF-10915W0T1 - Multicomp Pro

Description: MULTICOMP - SDCMF-10915W0T1 - CONNECTOR, SD, METAL COVER, SMT, R/A

Download SDCMF-10915W0T1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

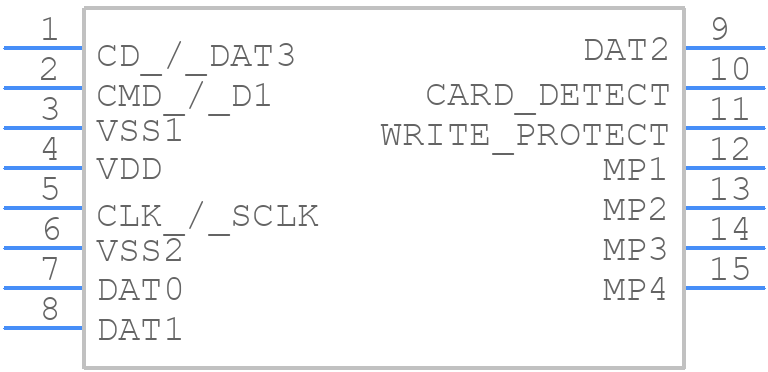

SDCMF-10915W0T1 - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints

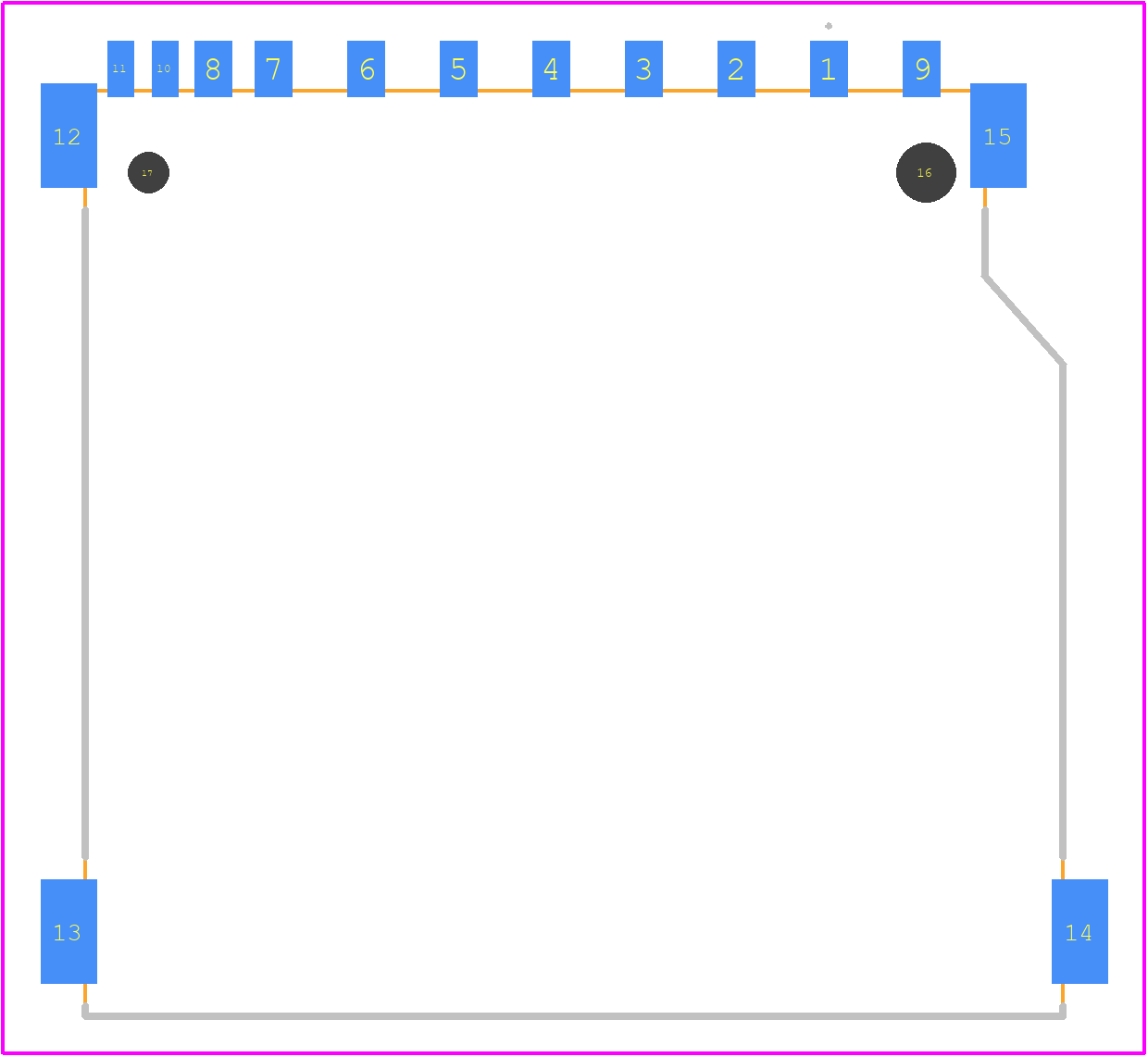

SDCMF-10915W0T1 - Multicomp Pro PCB footprint - Other - Other - SDCMF-10915W0T1-2
click to zoom
3D Models
SDCMF-10915W0T1 - Multicomp Pro - 3D model - Other - SDCMF-10915W0T1-2
click to zoom

SDCMF-10915W0T1 Details

  • Manufacturer Part Number:

    SDCMF-10915W0T1

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    SPC Multicomp

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.126 inch

  • Body Depth:

    0.984 inch

  • Body Length:

    1.102 inch

  • Connector Type:

    PCB CONNECTOR

  • Contact Finish Mating:

    GOLD (15)

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.098 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    15u inch

  • Terminal Pitch:

    2.4892 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    9

SDCMF-10915W0T1 Frequently Asked Questions (FAQs)

  • The recommended storage condition for SDCMF-10915W0T1 is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -20°C to 40°C and humidity below 80%.
  • Yes, SDCMF-10915W0T1 is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and securing of the component.
  • Yes, SDCMF-10915W0T1 is compatible with lead-free soldering processes, but it's recommended to follow the manufacturer's guidelines for soldering temperature and time to ensure reliable connections.
  • The maximum operating temperature range for SDCMF-10915W0T1 is -40°C to 125°C, but it's recommended to derate the component's performance at extreme temperatures.
  • Yes, SDCMF-10915W0T1 is designed to operate in high-humidity environments, but it's recommended to follow the manufacturer's guidelines for moisture protection and to ensure proper sealing and encapsulation.
