- Part Number SDD-130J
- Manufacturer Same Sky
- Pin Count 15
- Part Category Connector
- Package Category Other

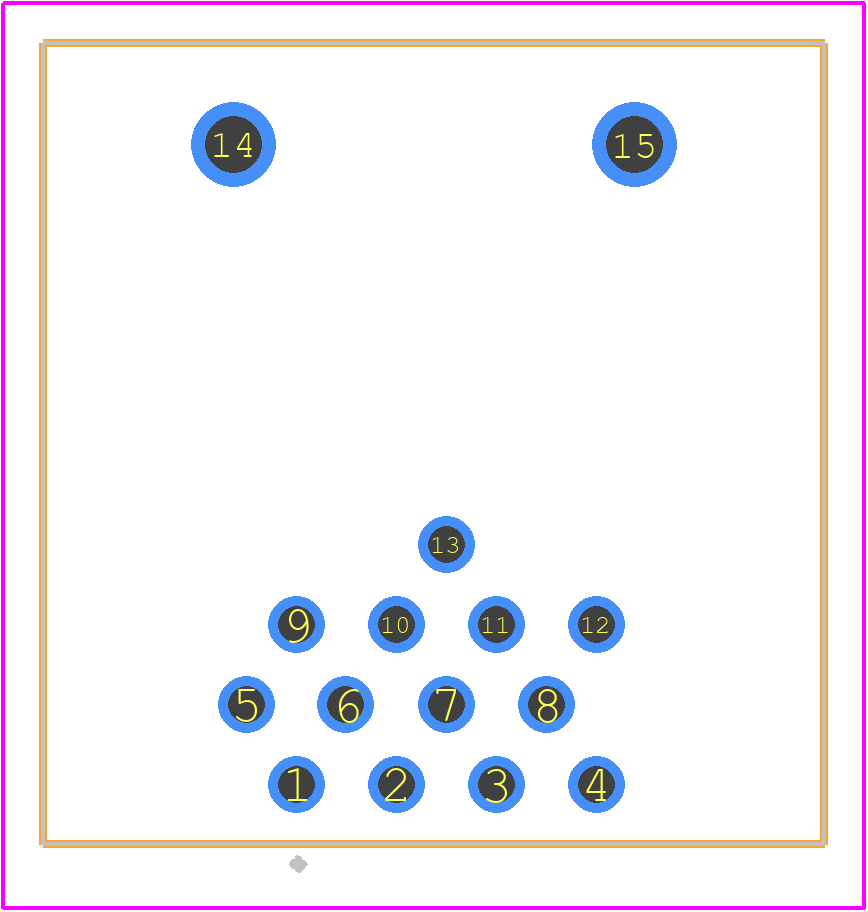

- Footprint Name Other - SDD-130J
- Released Date Jul 21, 2018
- Last Modified Date May 20, 2026 3:53 PM UTC
- Pinout / Pin List Click Here (Member Only)
SDD-130J Details
-
Manufacturer Part Number:
SDD-130J
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Transferred
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.20
-
Manufacturer:
Same Sky
-
Body Breadth:
0.767 inch
-
Body Depth:
0.787 inch
-
Body Length:
0.767 inch
-
Body/Shell Style:
JACK
-
Connector Type:
DIN CONNECTOR
SDD-130J Frequently Asked Questions (FAQs)
-
CUI Devices recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a microstrip transmission line design for the signal traces to minimize signal loss and radiation.
-
CUI Devices recommends securing the module with screws or adhesive, and using a conformal coating to protect the module from moisture and vibration. Additionally, ensure that the PCB is designed to withstand the expected vibration levels.
-
While the datasheet specifies an operating temperature range of -40°C to 85°C, CUI Devices recommends derating the module's performance at temperatures above 70°C to ensure reliable operation.
-
The SDD-130J is not designed for use in humid or wet environments. CUI Devices recommends using a conformal coating or potting the module to protect it from moisture, and ensuring that the PCB is designed to withstand the expected environmental conditions.
-
CUI Devices recommends powering up the module's VCC pin before applying any signals to the data pins, and ensuring that the power supply is stable and within the recommended voltage range before applying any signals.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
SDD-130J Overview
Use the download button to access the SDD-130J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SDD-1,
or try a keyword search, such as DIN Connectors
