SDE06S2403 - Summit Electronics

Description: 6W 3V DC/DC Converter ,Input Voltage [VDC]:24 ,VOUT[VDC]:3.3 ,Output Current [mA] :1350 ,Efficiency [%] Typ :78 ,Capacitive Load [uF] Max: 1800 .

Download SDE06S2403 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SDE06S2403 model

Email notifications will be applied after download.

Send part feedback

Symbol

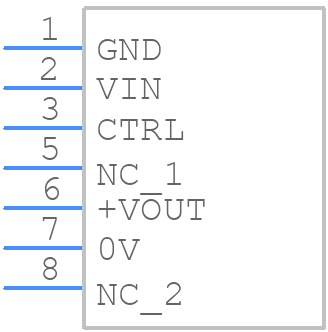

SDE06S2403 - Summit Electronics - PCB symbol

PCB Footprints

SDE06S2403 - Summit Electronics PCB footprint - Other - Other - SDE06S2403-2

3D Models

SDE06S2403 - Summit Electronics - 3D model - Other - SDE06S2403-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for SDE06S2403
Part Number SDE06S2403
Manufacturer Summit Electronics
Pin Count 7
Part Category Power Supply
Package Category Other
Footprint Name Other - SDE06S2403-2
Released Date May 15, 2026
Last Modified Date May 15, 2026 9:31 AM UTC
Pinout / Pin List Click Here (Member Only)

SDE06S2403 Details

Manufacturer Part Number:
SDE06S2403
Manufacturer:
(Of No Interest)

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SDE06S2403 Overview

Use the download button to access the SDE06S2403 schematic symbol, PCB footprint, and 3D model.
