SDF-130J - Same Sky

Description: Circular DIN Connectors DIN, 13P jack, rt, through hole, w/ shielding

Download SDF-130J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SDF-130J - Same Sky - PCB symbol
click to zoom
PCB Footprints

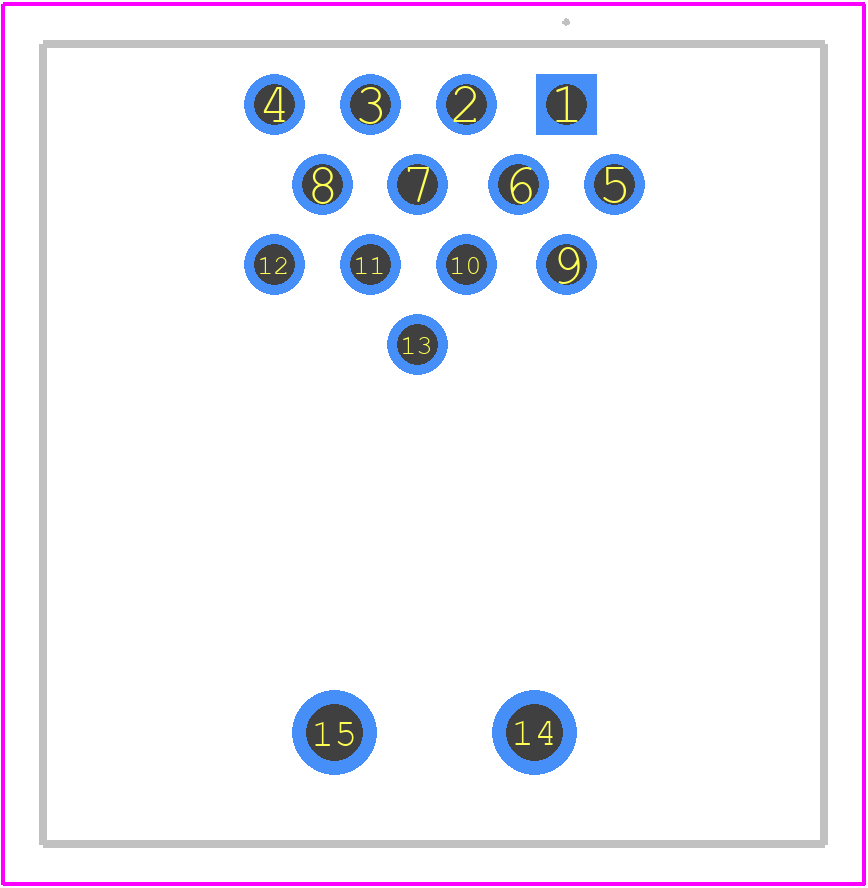

SDF-130J - Same Sky PCB footprint - Other - Other - SDF-130J-2
click to zoom
3D Models
SDF-130J - Same Sky - 3D model - Other - SDF-130J-2
click to zoom

SDF-130J Details

  • Manufacturer Part Number:

    SDF-130J

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    0

  • Board Mounting Option:

    LOCKPIN

  • Body Breadth:

    0.767 inch

  • Body Depth:

    0.787 inch

  • Body Length:

    0.767 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    DIN CONNECTOR

  • Contact Gender:

    FEMALE

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    RND PIN-SKT

  • Dielectric Withstanding Voltage:

    250VAC V

  • Durability:

    1000 Cycles

  • EMI Shielded:

    YES

  • Insertion Force-Max:

    58.8 N

  • Insulation Resistance:

    100000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Option:

    GENERAL PURPOSE

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    2 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.138 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    13

SDF-130J Frequently Asked Questions (FAQs)

  • CUI Devices provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and mechanical stability.
  • The SDF-130J has a high power density, so proper thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and follow the recommended PCB layout and thermal pad design to minimize thermal resistance.
  • While the datasheet specifies an operating temperature range of -40°C to 85°C, it's essential to consider the derating curves and thermal management to ensure reliable operation within this range.
  • The SDF-130J is designed for general-purpose applications, but it may not be suitable for high-vibration or high-shock environments. Consult with CUI Devices or a qualified engineer to determine the suitability of the device for your specific application.
  • The SDF-130J is a switching device, which can generate electromagnetic interference (EMI) and radio-frequency interference (RFI). Ensure proper shielding, filtering, and grounding to minimize EMI and RFI effects.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SDF-130J Overview

Use the download button to access the SDF-130J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SDF-1, or try a keyword search, such as DIN Connectors

About Same Sky

CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications. CUI Devices is headquartered in Lake Oswego, Oregon.
