A good PCB layout for the SDF-50J involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces to reduce EMI and noise.
To ensure proper decoupling, place a 10uF ceramic capacitor between the VIN and GND pins, and a 100nF ceramic capacitor between the VOUT and GND pins, as close to the device as possible.
The SDF-50J can handle input voltages up to 28V, but it's recommended to operate within the specified input voltage range of 7-24V for optimal performance and reliability.
The SDF-50J is rated for operation up to 85°C, but derating is required for temperatures above 70°C. Consult the datasheet for specific derating guidelines.
To troubleshoot issues with the SDF-50J, check the input voltage, output voltage, and output current. Verify that the device is properly decoupled and that the PCB layout is correct. Consult the datasheet and application notes for additional guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SDF-50J Overview

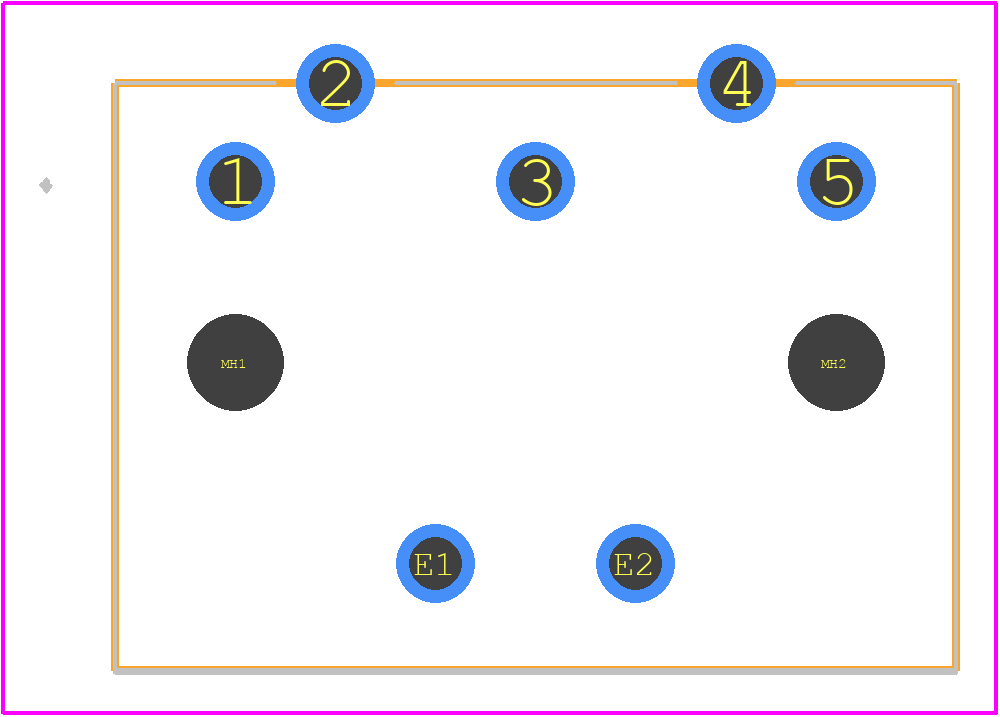

Use the download button to access the SDF-50J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SDF-5,
or try a keyword search, such as DIN Connectors
About Same Sky
CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications.
CUI Devices is headquartered in Lake Oswego, Oregon.
