12 X 18 MM, 1.40 MM HEIGHT, 0.50 MM PITCH, M0-276C, TFBGA-169
Pin Count:
169
HTS Code:
8542.31.00.30
Manufacturer:
SanDisk Corporation
YTEOL:
0
External Data Bus Width:
8
Host Data Transfer Rate-Max:
52 MBps
JESD-30 Code:
R-PBGA-B169
Length:
18 mm
Number of Terminals:
169
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-25 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
LFBGA
Package Shape:
RECTANGULAR
Package Style:
GRID ARRAY, LOW PROFILE, FINE PITCH
Seated Height-Max:
1.4 mm
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
2.7 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
OTHER
Terminal Form:
BALL
Terminal Pitch:
0.5 mm
Terminal Position:
BOTTOM
Width:
12 mm
uPs/uCs/Peripheral ICs Type:
SECONDARY STORAGE CONTROLLER, FLASH MEMORY DRIVE
SDIN5B2-32G Frequently Asked Questions (FAQs)
The recommended operating temperature range for the SDIN5B2-32G is -25°C to 85°C, with a storage temperature range of -40°C to 85°C.
To ensure reliable data retention, it's recommended to follow the manufacturer's guidelines for write endurance, avoid excessive temperature fluctuations, and use a suitable file system that supports wear leveling and bad block management.
Yes, the SDIN5B2-32G is designed to withstand vibrations up to 10G (10-2000Hz) and shocks up to 1500G (0.5ms, half sine wave), making it suitable for use in high-vibration environments.
The SDIN5B2-32G is designed to handle power cycling and voltage fluctuations. However, it's recommended to follow the manufacturer's guidelines for power-on and power-off sequences, and to ensure a stable power supply with a voltage range of 2.7V to 3.6V.
The typical write speed of the SDIN5B2-32G is up to 30MB/s, and the write endurance is up to 3,000 program/erase cycles per block, with a total of 10,000 program/erase cycles for the entire device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SDIN5B2-32G Overview

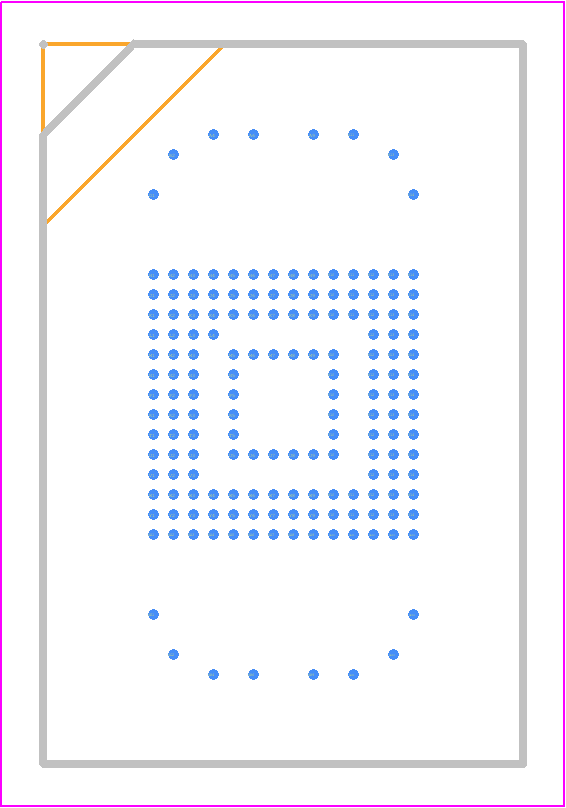

Use the download button to access the SDIN5B2-32G schematic symbol, PCB footprint, and 3D model.
