SDINBDG4-32G-ZA - SanDisk

Description: eMMC 32GB iNAND 7250 Auto eMMC 5.1 -40 to 105C BGA-153(11.5x13)

Download SDINBDG4-32G-ZA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SDINBDG4-32G-ZA - SanDisk - PCB symbol
click to zoom
PCB Footprints

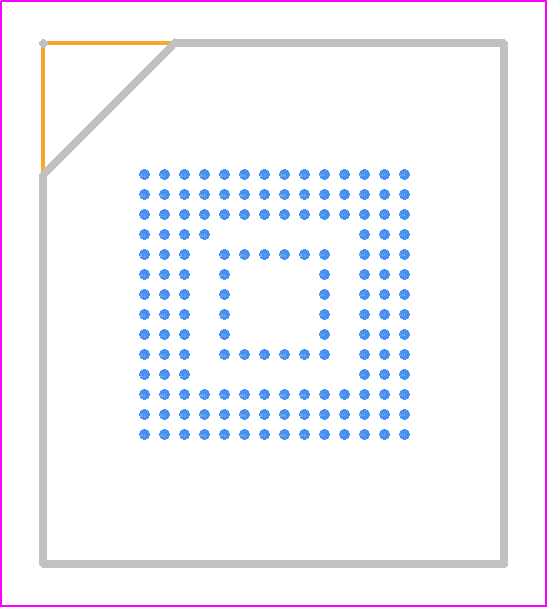

SDINBDG4-32G-ZA - SanDisk PCB footprint - BGA - BGA - BGA-153(11.5x13)
click to zoom
3D Models
SDINBDG4-32G-ZA - SanDisk - 3D model - BGA - BGA-153(11.5x13)
click to zoom

SDINBDG4-32G-ZA Details

  • Manufacturer Part Number:

    SDINBDG4-32G-ZA

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    VFBGA-153

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    SanDisk Corporation

  • Clock Frequency-Max (fCLK):

    200 MHz

  • Data Retention Time-Min:

    15

  • Endurance:

    3000 Write/Erase Cycles

  • JESD-30 Code:

    R-PBGA-B153

  • Length:

    13 mm

  • Memory Density:

    274877906944 bit

  • Memory IC Type:

    eMMC

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    153

  • Number of Words:

    34359738368 words

  • Number of Words Code:

    32000000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Organization:

    32GX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA153,14X14,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3.3 V

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Serial Bus Type:

    EMMC 5.1

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Type:

    MLC NAND TYPE

  • Width:

    11.5 mm

SDINBDG4-32G-ZA Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the SDINBDG4-32G-ZA is -25°C to 85°C (-13°F to 185°F) for commercial grade and -40°C to 85°C (-40°F to 185°F) for industrial grade.
  • To ensure data integrity, it's recommended to use a voltage regulator to maintain a stable power supply, and implement a power-fail interrupt to safely shut down the system during power failures. Additionally, using a capacitor to filter out power noise can help prevent data corruption.
  • The SDINBDG4-32G-ZA supports up to 3,000 write cycles per block, with a total of 4,096 blocks. This translates to a total of approximately 12,288,000 write cycles for the entire card.
  • While the SDINBDG4-32G-ZA is designed to operate in a wide range of environmental conditions, it's recommended to use a conformal coating or other protective measures to prevent moisture damage in high-humidity environments.
  • The SDINBDG4-32G-ZA supports the SD Association's Security Specification, which includes secure erase and sanitize features. To implement these features, refer to the SD Association's documentation and the SD card's command set.
