SDL-108-G-12 footprint, schematic symbol and 3D model by SAMTEC

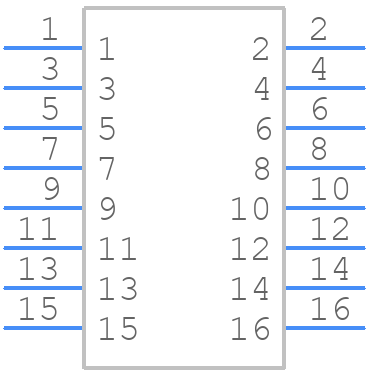

Symbol

click to zoom

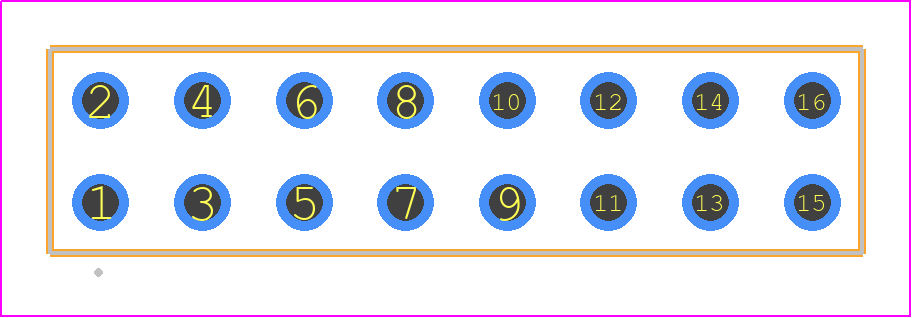

PCB Footprints

SDL-108-G-12 - SAMTEC PCB footprint - Other - Other - SDL-108-XX-YY

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SDL-108-G-12
Part Number SDL-108-G-12
Manufacturer SAMTEC
Pin Count 16
Part Category Connector
Package Category Other
Footprint Name Other - SDL-108-XX-YY
Released Date Jun 9, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SDL-108-G-12 Details

Manufacturer Part Number:
SDL-108-G-12
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
10 Weeks
Manufacturer:
Samtec Inc
YTEOL:
10
Additional Feature:
LOW PROFILE
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (30) OVER NICKEL (50)
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
BERYLLIUM COPPER
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e4
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
16

SDL-108-G-12 Frequently Asked Questions (FAQs)

The recommended torque for the screws on the SDL-108-G-12 connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the SDL-108-G-12 connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for the SDL-108-G-12 connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the connector's performance at temperatures above 100°C (212°F).
While the SDL-108-G-12 connector is designed for PCB thicknesses up to 1.57 mm, Samtec recommends consulting their application engineers for custom solutions if a thicker PCB is required. Additional design considerations and modifications may be necessary.
The recommended mating cycle for the SDL-108-G-12 connector is 500-1000 cycles according to Samtec's datasheet. However, this may vary depending on the specific application and environmental conditions.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SDL-108-G-12 Overview

Use the download button to access the SDL-108-G-12 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SDL-1, or try a keyword search, such as Headers and Edge Type Connectors
