SDL-110-G-12 - SAMTEC

Description: 20 Position, .100" Low Profile Double Row Screw Machine Socket Strip

Download SDL-110-G-12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SDL-110-G-12 - SAMTEC - PCB symbol
click to zoom
PCB Footprints

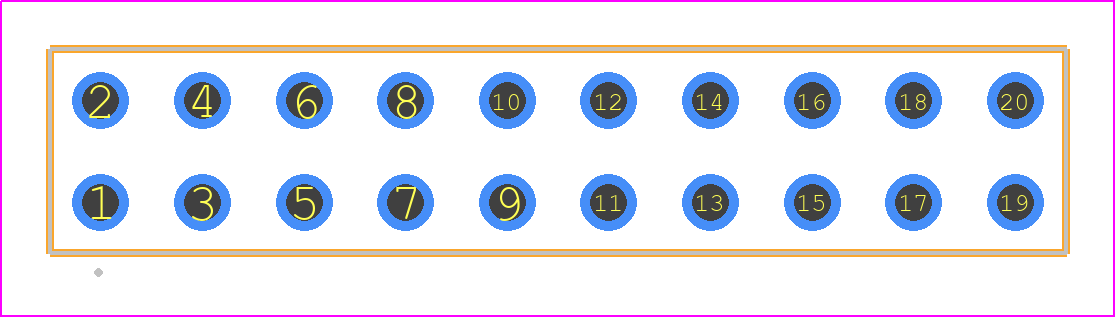

SDL-110-G-12 - SAMTEC PCB footprint - Other - Other - SDL-110-XX-YY
click to zoom
3D Models
SDL-110-G-12 - SAMTEC - 3D model - Other - SDL-110-XX-YY
click to zoom

SDL-110-G-12 Details

  • Manufacturer Part Number:

    SDL-110-G-12

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    10

  • Additional Feature:

    LOW PROFILE

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (50)

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    BERYLLIUM COPPER

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

SDL-110-G-12 Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Handle the connector by the plastic body only, avoiding touching the contacts or guide pins. Use a vacuum pick-up tool or a soft, non-abrasive material to handle the connector during assembly.
  • The maximum operating temperature range for the SDL-110-G-12 connector is -55°C to +125°C. However, it's essential to consult the datasheet and Samtec's application notes for specific temperature ratings and derating information.
  • Yes, the SDL-110-G-12 connector is designed to withstand high-vibration environments. However, it's crucial to follow Samtec's recommended assembly and mounting procedures to ensure the connector's reliability and performance.
  • The recommended torque value for the SDL-110-G-12 connector's screws is 0.5-1.5 in-lbs (0.056-0.169 Nm). It's essential to follow Samtec's recommended torque values to prevent damage to the connector or the PCB.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SDL-110-G-12 Overview

Use the download button to access the SDL-110-G-12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SDL-1, or try a keyword search, such as Headers and Edge Type Connectors
