The recommended torque is 0.5-1.5 in-lbs (0.056-0.169 Nm) for the screws on the SDL-110-TT-19 connector, as specified in the Samtec application notes.
Yes, the SDL-110-TT-19 connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper mounting and screw torque to ensure reliable operation.
The SDL-110-TT-19 connector has an operating temperature range of -55°C to +125°C, making it suitable for a wide range of applications, including industrial, automotive, and aerospace.
Yes, the SDL-110-TT-19 connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements for environmental sustainability and safety.
The SDL-110-TT-19 connector has a moisture sensitivity level (MSL) rating of 1, indicating it can withstand normal humidity levels. However, for extreme humidity or wet environments, Samtec recommends applying a conformal coating or using a sealed connector to ensure reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SDL-110-TT-19 Overview

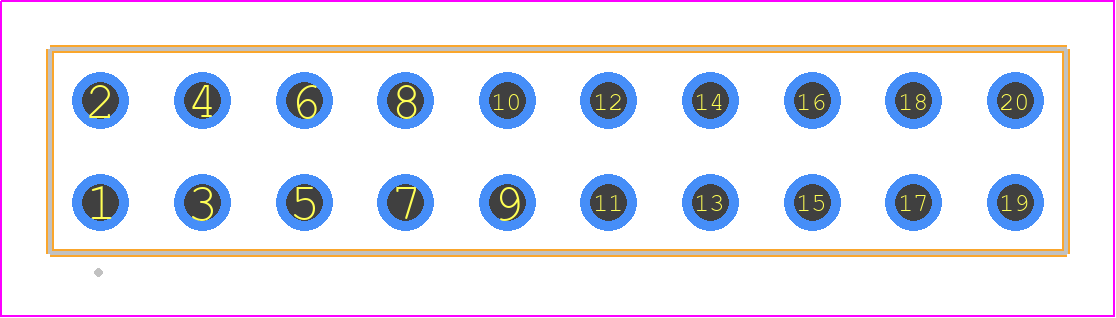

Use the download button to access the SDL-110-TT-19 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SDL-1,
or try a keyword search, such as Headers and Edge Type Connectors
