SDL-112-T-12 - SAMTEC

Description: 24 Position, .100" Low Profile Double Row Screw Machine Socket Strip

Download SDL-112-T-12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SDL-112-T-12 - SAMTEC - PCB symbol
click to zoom
PCB Footprints

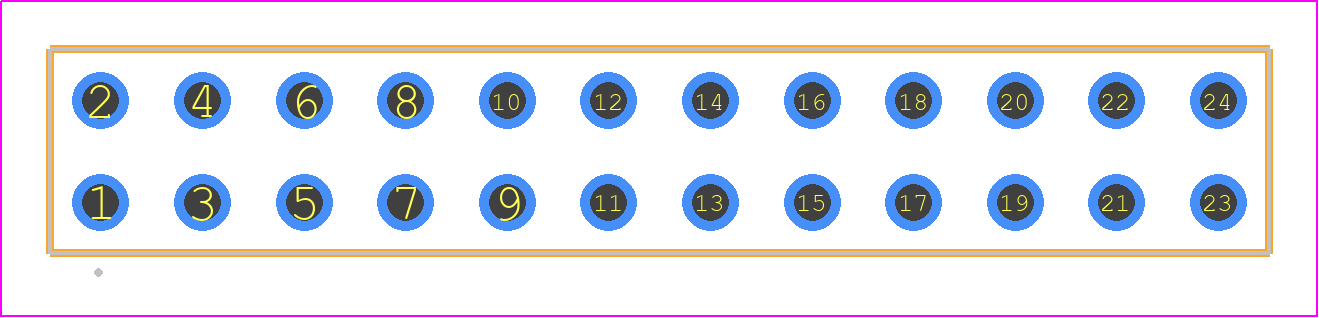

SDL-112-T-12 - SAMTEC PCB footprint - Other - Other - SDL-112-XX-YY
click to zoom

SDL-112-T-12 Details

  • Manufacturer Part Number:

    SDL-112-T-12

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    10

  • Additional Feature:

    LOW PROFILE

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (50)

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    24

SDL-112-T-12 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the SDL-112-T-12 connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the SDL-112-T-12 connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
  • The maximum operating temperature for the SDL-112-T-12 connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
  • Yes, the SDL-112-T-12 connector can accommodate PCB thicknesses up to 2.36 mm (0.093 in). However, Samtec recommends consulting their application notes for specific guidance on PCB thickness and connector orientation.
  • The recommended mating cycle for the SDL-112-T-12 connector is 500-1000 cycles according to Samtec's datasheet. However, this may vary depending on the specific application and environmental conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SDL-112-T-12 Overview

Use the download button to access the SDL-112-T-12 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SDL-1, or try a keyword search, such as Headers and Edge Type Connectors
