SDMP0340LAT-7-F footprint, schematic symbol and 3D model by Diodes Incorporated

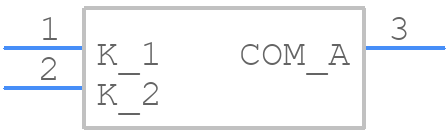

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SDMP0340LAT-7-F
Part Number SDMP0340LAT-7-F
Manufacturer Diodes Incorporated
Pin Count 3
Part Category Schottky Diode
Package Category SOT23 (3-Pin)
Footprint Name SOT23 (3-Pin) - SOT-523
Released Date Jan 10, 2019
Last Modified Date Jun 25, 2024 8:07 AM UTC
Pinout / Pin List Click Here (Member Only)

SDMP0340LAT-7-F Details

Manufacturer Part Number:
SDMP0340LAT-7-F
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
GREEN, PLASTIC PACKAGE-3
Pin Count:
3
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8541.10.00.70
Factory Lead Time:
12 Weeks
Manufacturer:
Diodes Incorporated
YTEOL:
6
Application:
GENERAL PURPOSE
Configuration:
COMMON ANODE, 2 ELEMENTS
Diode Element Material:
SILICON
Diode Type:
RECTIFIER DIODE
Forward Voltage-Max (VF):
0.37 V
JESD-30 Code:
R-PDSO-G3
JESD-609 Code:
e3
Moisture Sensitivity Level:
1
Non-rep Pk Forward Current-Max:
0.2 A
Number of Elements:
2
Number of Terminals:
3
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.03 A
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Power Dissipation-Max:
0.15 W
Qualification Status:
Not Qualified
Rep Pk Reverse Voltage-Max:
40 V
Surface Mount:
YES
Technology:
SCHOTTKY
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30

SDMP0340LAT-7-F Frequently Asked Questions (FAQs)

The recommended PCB footprint for SDMP0340LAT-7-F is a standard SOT23-6 package with a 1.8mm x 1.35mm body size. A minimum pad size of 0.8mm x 0.8mm is recommended for reliable soldering.
To ensure reliable operation of SDMP0340LAT-7-F in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device.
The maximum allowable voltage for SDMP0340LAT-7-F is 40V. Exceeding this voltage may cause permanent damage to the device.
Yes, SDMP0340LAT-7-F can be used in switching regulator applications. However, it is essential to ensure that the device is properly biased and that the switching frequency is within the recommended range to avoid overheating and ensure reliable operation.
To handle ESD protection for SDMP0340LAT-7-F, it is recommended to follow proper ESD handling procedures, such as using ESD-safe workstations, wearing ESD-protective clothing, and using ESD-protective packaging materials.
