SDMP0340LCT-7-F footprint, schematic symbol and 3D model by Diodes Incorporated

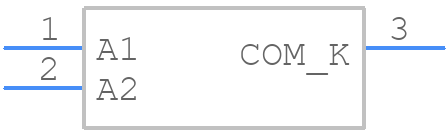

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SDMP0340LCT-7-F
Part Number SDMP0340LCT-7-F
Manufacturer Diodes Incorporated
Pin Count 3
Part Category Schottky Diode
Package Category SOT23 (3-Pin)
Footprint Name SOT23 (3-Pin) - SOT-523_2024
Released Date Jul 31, 2019
Last Modified Date Jun 25, 2024 8:10 AM UTC
Pinout / Pin List Click Here (Member Only)

SDMP0340LCT-7-F Details

Manufacturer Part Number:
SDMP0340LCT-7-F
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
GREEN, PLASTIC PACKAGE-3
Pin Count:
3
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8541.10.00.70
Factory Lead Time:
12 Weeks
Manufacturer:
Diodes Incorporated
YTEOL:
6
Application:
GENERAL PURPOSE
Configuration:
COMMON CATHODE, 2 ELEMENTS
Diode Element Material:
SILICON
Diode Type:
RECTIFIER DIODE
Forward Voltage-Max (VF):
0.37 V
JESD-30 Code:
R-PDSO-G3
JESD-609 Code:
e3
Moisture Sensitivity Level:
1
Non-rep Pk Forward Current-Max:
0.2 A
Number of Elements:
2
Number of Terminals:
3
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.03 A
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Power Dissipation-Max:
0.15 W
Qualification Status:
Not Qualified
Rep Pk Reverse Voltage-Max:
40 V
Surface Mount:
YES
Technology:
SCHOTTKY
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30

SDMP0340LCT-7-F Frequently Asked Questions (FAQs)

The recommended PCB footprint for SDMP0340LCT-7-F is a standard SOT23-6L package with a 1.8mm x 1.35mm body size. The datasheet provides a recommended land pattern and soldering guidelines.
To ensure output voltage stability, it's essential to follow the recommended capacitor values and placement guidelines in the datasheet. Additionally, consider the input voltage range, output current, and PCB layout to minimize noise and ripple.
The maximum input voltage for SDMP0340LCT-7-F is 6.5V. Exceeding this voltage may damage the device. Ensure your design stays within the recommended input voltage range to ensure reliable operation.
SDMP0340LCT-7-F is rated for operation up to 125°C. However, it's essential to consider the device's power dissipation, thermal resistance, and PCB design to ensure reliable operation in high-temperature environments.
To calculate power dissipation, consider the input voltage, output voltage, output current, and quiescent current. Use the datasheet's equations and graphs to estimate the power dissipation and ensure your design stays within the recommended operating conditions.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SDMP0340LCT-7-F Overview

Use the download button to access the SDMP0340LCT-7-F schematic symbol, PCB footprint, and 3D model.
