SDP2000-L - Sensirion

Description: Pressure Sensor -0.015PSI ~ 0.508PSI (-0.1kPa ~ 3.5kPa) Differential Male - 0.2" (5.2mm) Tube, Dual 0.25 V ~ 4 V Module

Download SDP2000-L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SDP2000-L - Sensirion - PCB symbol
click to zoom
PCB Footprints

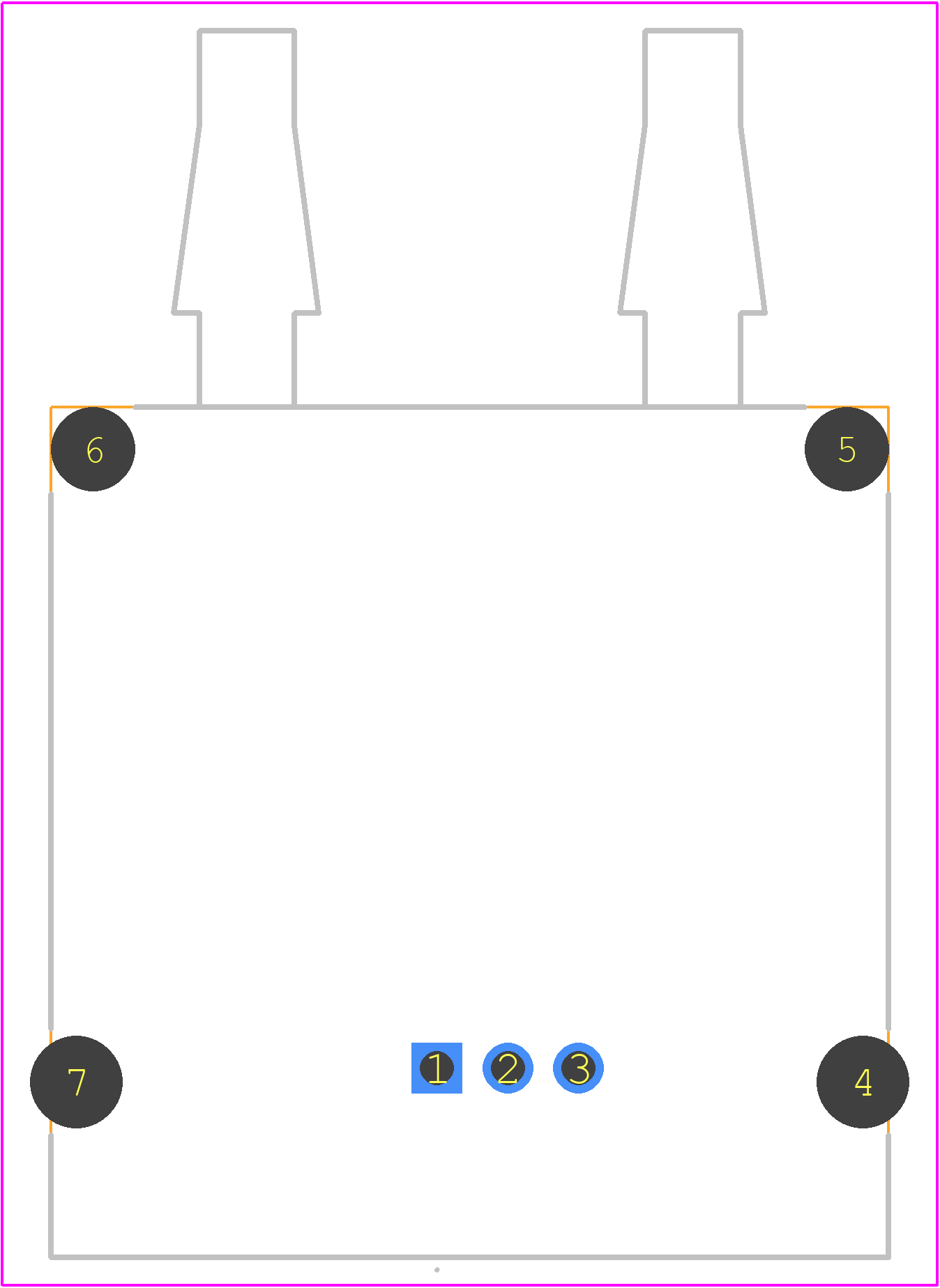

SDP2000-L - Sensirion PCB footprint - Other - Other - SDP2000-L-4
click to zoom
3D Models
SDP2000-L - Sensirion - 3D model - Other - SDP2000-L-4
click to zoom

SDP2000-L Details

  • Manufacturer Part Number:

    SDP2000-L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    PACKAGE-3

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2018-05-17

  • Manufacturer:

    Sensirion

  • YTEOL:

    3

  • Accuracy-Max (%):

    0.2%

  • Body Breadth:

    30 mm

  • Body Height:

    20.3 mm

  • Body Length or Diameter:

    30.5 mm

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -10 °C

  • Output Range:

    0.25-4V

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PPS

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    MASS AIR FLOW SENSOR

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Technology:

    CMOS

SDP2000-L Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the SDP2000-L is -20°C to 60°C. However, it's essential to note that the sensor's accuracy and performance may degrade outside the 0°C to 40°C range.
  • The SDP2000-L is factory-calibrated, and no additional calibration is required. However, if you need to perform a calibration check or adjust the sensor's output, you can use the calibration protocol provided by Sensirion.
  • The response time of the SDP2000-L is typically around 10 ms, but it can vary depending on the specific application and environmental conditions.
  • Yes, the SDP2000-L is designed to operate in humid or wet environments, but it's essential to ensure that the sensor is properly sealed and protected from direct water exposure to prevent damage.
  • The typical power consumption of the SDP2000-L is around 15 mA at 5 V, but this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SDP2000-L Overview

Use the download button to access the SDP2000-L schematic symbol, PCB footprint, and 3D model.
