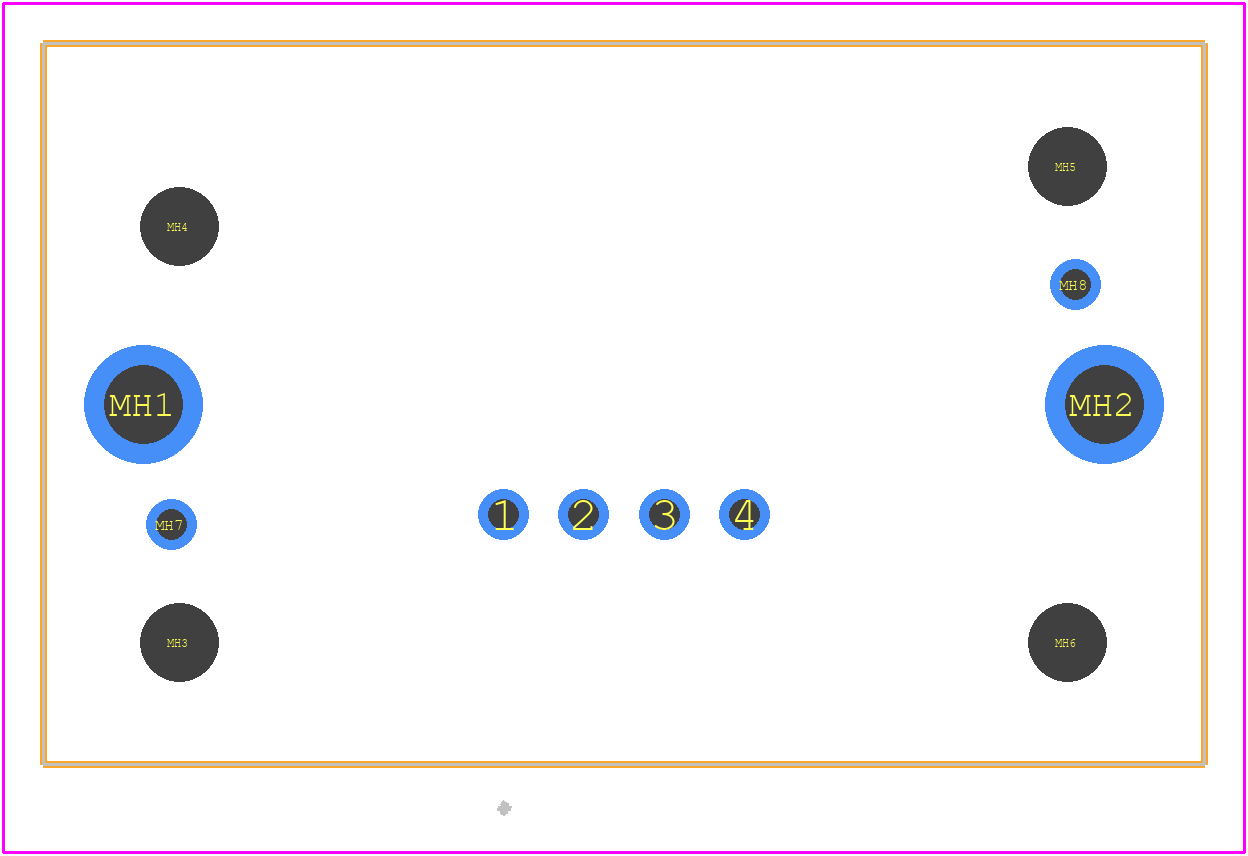

SDP600-125PA - Sensirion PCB footprint - Other - Other - SDP600-125PA-3
click to zoom
3D Models
SDP600-125PA - Sensirion - 3D model - Other - SDP600-125PA-3
click to zoom

SDP600-125PA Details

  • Manufacturer Part Number:

    SDP600-125PA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    ROHS AND REACH COMPLIANT, PACKAGE-4

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • Manufacturer:

    Sensirion

  • YTEOL:

    3

  • Accuracy-Max (%):

    3%

  • Body Breadth:

    18 mm

  • Body Length or Diameter:

    29 mm

  • Housing:

    PBT

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Bits:

    12

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Output Type:

    DIGITAL OUTPUT

  • Package Shape/Style:

    RECTANGULAR

  • Port Type:

    STRAIGHT

  • Pressure Range-Max:

    0.018 Psi

  • Pressure Range-Min:

    -0.018 Psi

  • Pressure Sensing Mode:

    DIFFERENTIAL

  • Response Time:

    4600 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,CAPACITIVE

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

SDP600-125PA Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the SDP600-125PA is -20°C to 70°C. However, it can be operated up to 85°C with reduced accuracy and lifetime.
  • The SDP600-125PA is factory-calibrated and does not require additional calibration. However, it is recommended to perform a zero-point calibration after installation to ensure optimal accuracy.
  • The response time of the SDP600-125PA is typically <10 ms, making it suitable for fast-changing pressure applications.
  • The SDP600-125PA is designed to operate in dry environments. Exposure to high humidity or wet conditions may affect its accuracy and reliability. If you need to use it in humid or wet environments, consider using additional protection measures such as a waterproof housing or coating.
  • The SDP600-125PA can withstand pressures up to 2 times the maximum rated pressure (250 Pa) for a short duration (<1 minute) without damage. However, continuous operation above the maximum rated pressure may reduce its accuracy and lifetime.
