SDP600-500PA - Sensirion

Description: Pressure Sensor ±0.07PSI (±0.5kPa) Differential 16b,3.6V -20°C ~ 80°C Through Hole

Download SDP600-500PA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SDP600-500PA - Sensirion - PCB symbol
click to zoom
PCB Footprints

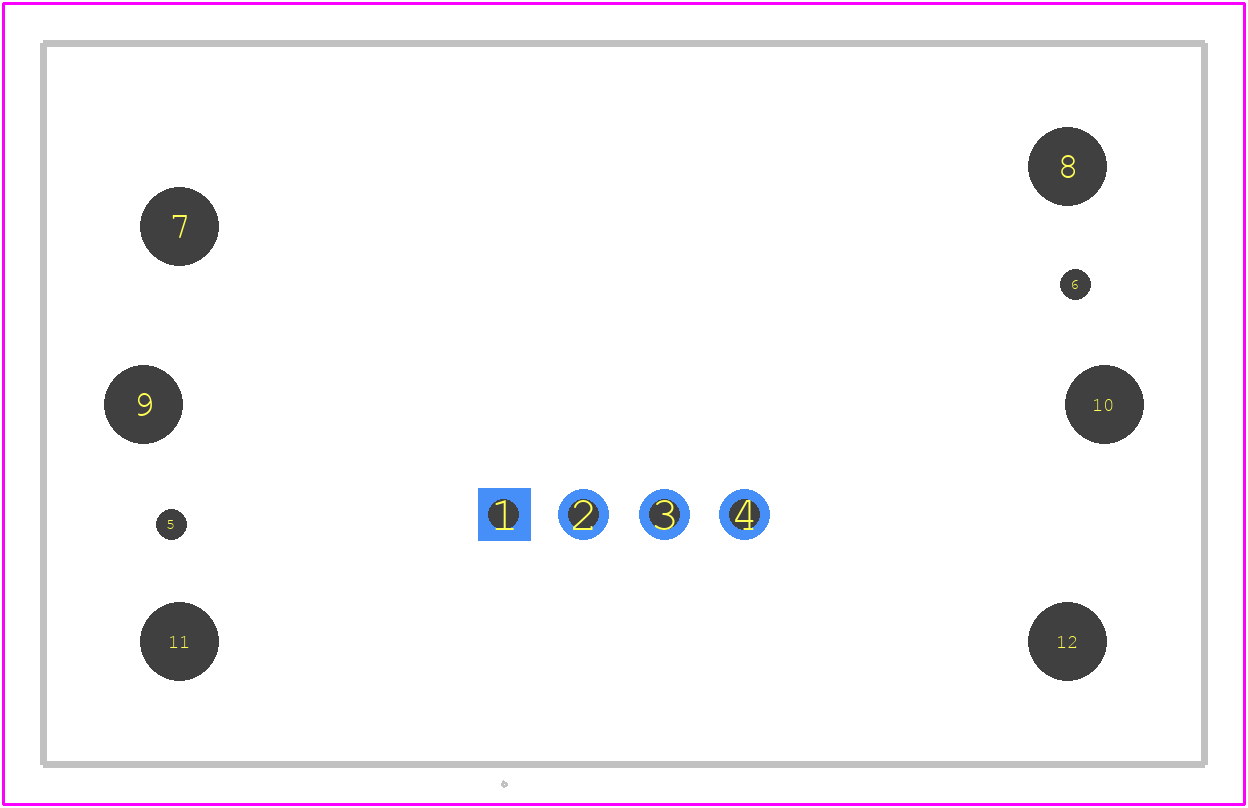

SDP600-500PA - Sensirion PCB footprint - Other - Other - SDP600-500PA-1
click to zoom
3D Models
SDP600-500PA - Sensirion - 3D model - Other - SDP600-500PA-1
click to zoom

SDP600-500PA Details

  • Manufacturer Part Number:

    SDP600-500PA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    ROHS AND REACH COMPLIANT, PACKAGE-4

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • Manufacturer:

    Sensirion

  • YTEOL:

    3

  • Accuracy-Max (%):

    3%

  • Body Breadth:

    18 mm

  • Body Length or Diameter:

    29 mm

  • Housing:

    PBT

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Bits:

    12

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Output Type:

    DIGITAL OUTPUT

  • Package Shape/Style:

    RECTANGULAR

  • Port Type:

    STRAIGHT

  • Pressure Range-Max:

    0.07 Psi

  • Pressure Range-Min:

    -0.07 Psi

  • Pressure Sensing Mode:

    DIFFERENTIAL

  • Response Time:

    4600 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,CAPACITIVE

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

SDP600-500PA Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the SDP600-500PA is -20°C to 70°C. However, it can withstand temperatures up to 85°C for short periods of time.
  • The SDP600-500PA is factory-calibrated and does not require additional calibration. However, it is recommended to perform a zero-point calibration after installation to ensure accurate readings.
  • The response time of the SDP600-500PA is typically around 1 ms, making it suitable for fast-changing pressure applications.
  • Yes, the SDP600-500PA is designed to operate in humid environments and can withstand condensation. However, it is not suitable for immersion in water or exposure to high-pressure washdowns.
  • The recommended power supply voltage for the SDP600-500PA is 5V ± 10%. It is essential to ensure a stable power supply to maintain accurate readings.
