Sensirion provides a recommended PCB layout and land pattern in their application note AN17, which can be found on their website. It's essential to follow these guidelines to ensure proper thermal management and to prevent damage to the sensor.
Sensirion provides a calibration protocol in their application note AN19, which includes a step-by-step guide on how to calibrate the sensor. Additionally, Sensirion offers a calibration service for customers who require customized calibration.
While the datasheet specifies an operating temperature range of -20°C to 70°C, Sensirion recommends limiting the operating temperature to -10°C to 60°C for optimal performance and accuracy. Exceeding this range may affect the sensor's accuracy and lifespan.
The SDP800-125PA is designed to operate in dry environments. Exposure to high humidity or wet conditions may affect the sensor's performance and accuracy. If you need to use the sensor in a humid or wet environment, consider using a protective coating or enclosure to prevent moisture ingress.
To prevent damage to the sensor, Sensirion recommends powering up the VCC pin before the VDD pin. Additionally, ensure that the power supply is stable and within the recommended voltage range before applying power to the sensor.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SDP800-125PA Overview

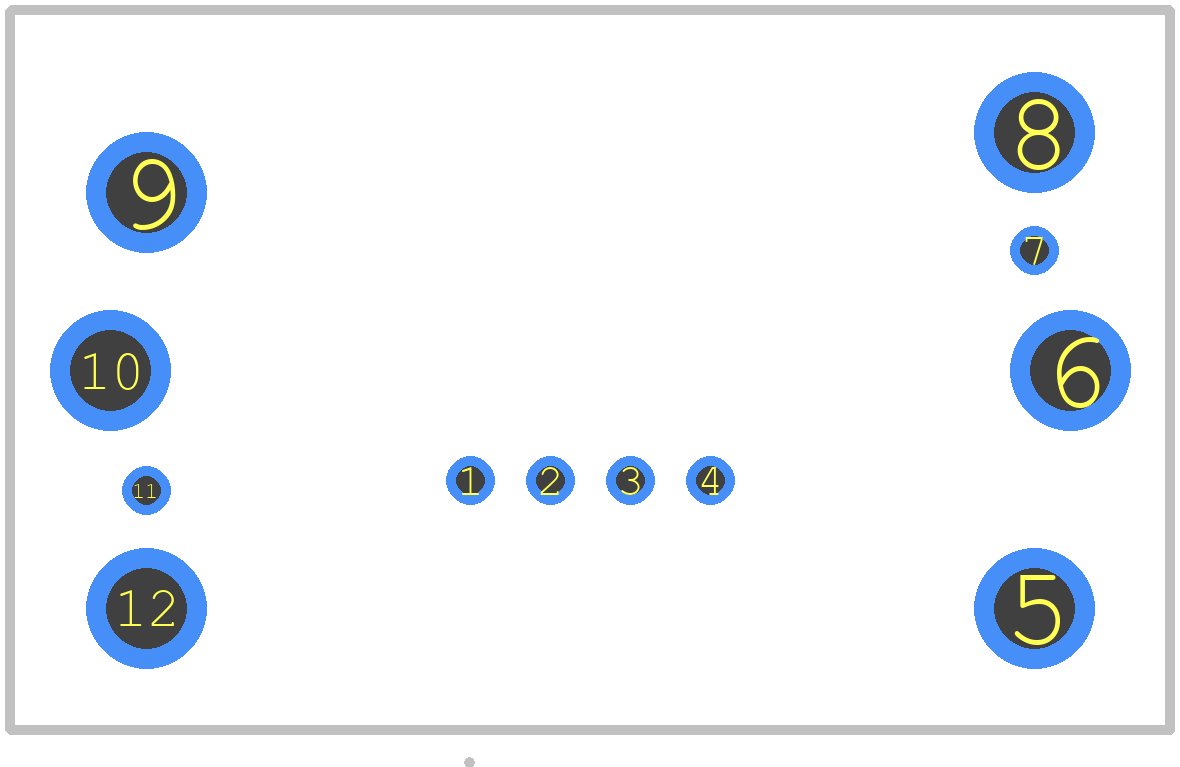

Use the download button to access the SDP800-125PA schematic symbol and PCB footprint.
