SDP810-125Pa - Sensirion

Description: Sensirion SDP810-125PA, Differential Pressure Sensor +125Pa 4-Pin

Download SDP810-125Pa Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SDP810-125Pa - Sensirion - PCB symbol
click to zoom
PCB Footprints

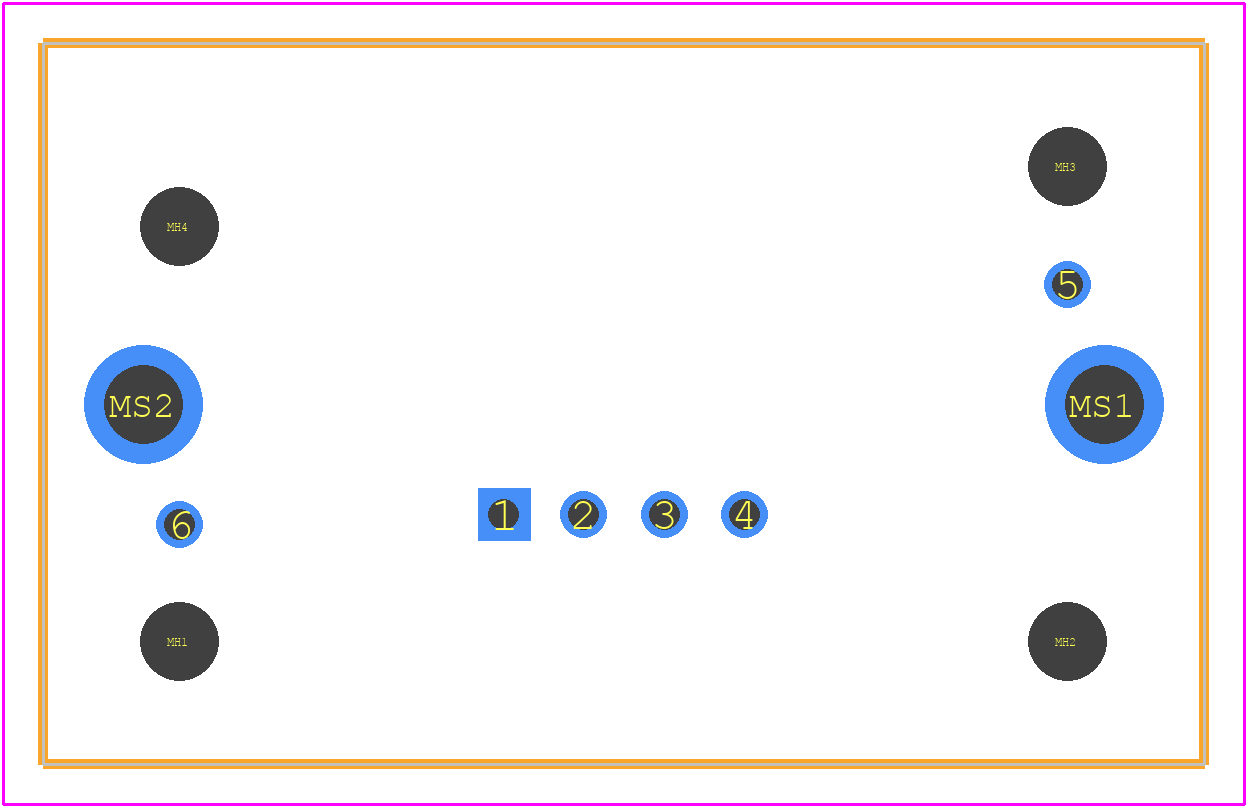

SDP810-125Pa - Sensirion PCB footprint - Other - Other - SDP81x
click to zoom
3D Models
SDP810-125Pa - Sensirion - 3D model - Other - SDP81x
click to zoom

SDP810-125Pa Details

  • Manufacturer Part Number:

    SDP810-125PA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • Manufacturer:

    Sensirion

  • Accuracy-Max (%):

    3%

  • Body Breadth:

    18 mm

  • Body Height:

    10.25 mm

  • Body Length or Diameter:

    29 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    DIGITAL OUTPUT

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    MASS AIR FLOW SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

SDP810-125Pa Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the SDP810-125PA is -20°C to 70°C. However, it's essential to note that the sensor's accuracy and performance may degrade outside the temperature range of 0°C to 50°C.
  • The SDP810-125PA is a calibrated sensor, and no additional calibration is required. However, it's recommended to perform a zero-point calibration (i.e., setting the sensor to a known pressure) to ensure optimal performance.
  • The response time of the SDP810-125PA is typically around 1 ms, making it suitable for applications that require fast pressure measurements.
  • The SDP810-125PA is designed to operate in harsh environments, including high humidity and vibration. However, it's essential to ensure proper sealing and protection of the sensor to prevent damage from environmental factors.
