SDP810-500PA - Sensirion

Description: Board Mount Pressure Sensors Tube Connection, I2C , 500Pa

Download SDP810-500PA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SDP810-500PA - Sensirion - PCB symbol
click to zoom
PCB Footprints

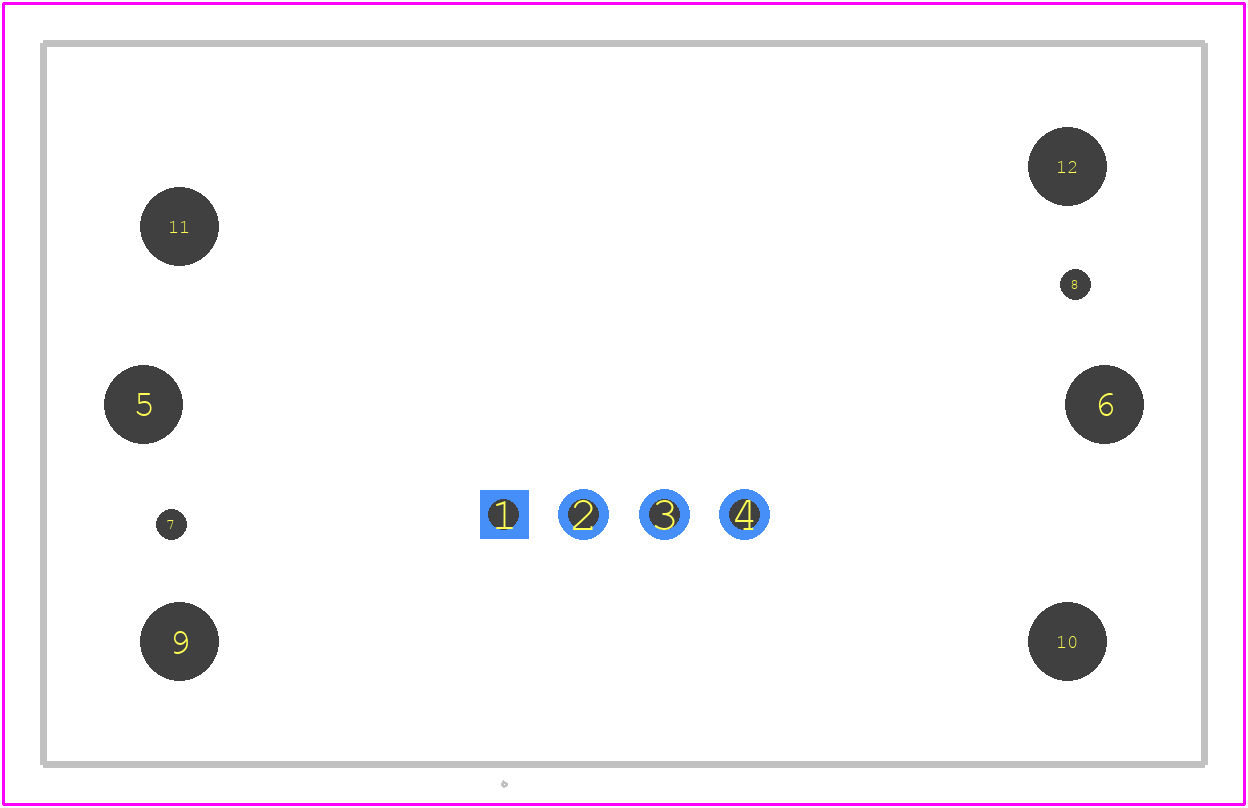

SDP810-500PA - Sensirion PCB footprint - Other - Other - 29mm x 18mm x 24mm
click to zoom
3D Models
SDP810-500PA - Sensirion - 3D model - Other - 29mm x 18mm x 24mm
click to zoom

SDP810-500PA Details

  • Manufacturer Part Number:

    SDP810-500PA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • Manufacturer:

    Sensirion

  • Accuracy-Max (%):

    3%

  • Body Breadth:

    18 mm

  • Body Height:

    10.25 mm

  • Body Length or Diameter:

    29 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    DIGITAL OUTPUT

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    MASS AIR FLOW SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

SDP810-500PA Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the SDP810-500PA is -20°C to 70°C (-4°F to 158°F).
  • The SDP810-500PA is calibrated by Sensirion during manufacturing. No additional calibration is required. However, it's recommended to perform a zero-point calibration in the application to ensure accurate measurements.
  • The response time of the SDP810-500PA is typically <10 ms, making it suitable for fast-changing pressure applications.
  • The SDP810-500PA is designed to operate in harsh environments, including high humidity and vibrations. However, it's essential to follow proper installation and sealing guidelines to ensure reliable operation.
  • Yes, the SDP810-500PA can measure bidirectional pressure, allowing it to detect both positive and negative pressure differences.
