SDP816-125Pa - Sensirion

Description: Sensirion SDP816-125PA, Differential Pressure Sensor +125Pa 0.1 → 0.9 V Output, 4-Pin

Download SDP816-125Pa Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

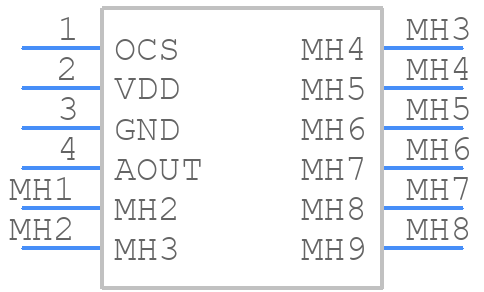

SDP816-125Pa - Sensirion - PCB symbol
click to zoom
PCB Footprints

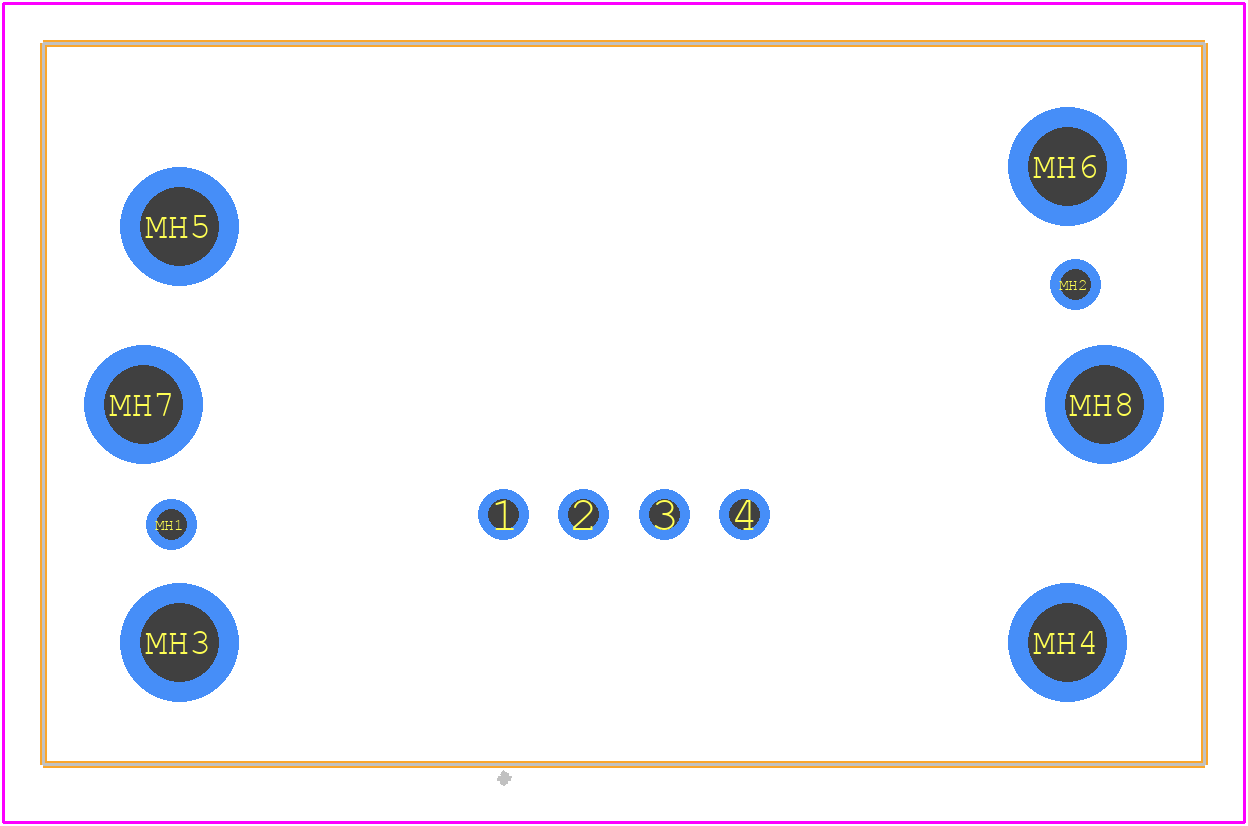

SDP816-125Pa - Sensirion PCB footprint - Other - Other - SDP816-125Pa-1
click to zoom
3D Models
SDP816-125Pa - Sensirion - 3D model - Other - SDP816-125Pa-1
click to zoom

SDP816-125Pa Details

  • Manufacturer Part Number:

    SDP816-125PA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • Manufacturer:

    Sensirion

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    DIFFERENTIAL

  • Output Range:

    0.1-0.9V

  • Output Type:

    ANALOG VOLTAGE

  • Sensors/Transducers Type:

    MASS AIR FLOW SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

SDP816-125Pa Frequently Asked Questions (FAQs)

  • A symmetrical layout with a solid ground plane and a separate analog ground plane is recommended. Keep the sensor away from high-frequency components and ensure a low-impedance path to ground.
  • Calibration involves applying known pressures and recording the corresponding output voltages. A 2-point or 5-point calibration is recommended, with one point at atmospheric pressure and the other points at the minimum and maximum pressures of interest.
  • Apply power to the VCC pin first, followed by the VDD pin. This ensures that the internal voltage regulators are powered up correctly and prevents damage to the device.
  • Temperature compensation can be achieved using an external temperature sensor and a microcontroller to correct for temperature-related errors. Alternatively, use a temperature-compensated version of the sensor or a separate temperature sensor to correct for temperature effects.
  • The maximum allowable pressure range is -1 to 16 bar (gauge pressure). Exceeding this range may damage the sensor or affect its accuracy.
