SDS-30J - Same Sky

Description: 3 Position Circular Connector Receptacle, Female Sockets Solder , 2 A , 100 VAC , -40 °C ~ +85 °C

Download SDS-30J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SDS-30J - Same Sky - PCB symbol
click to zoom
PCB Footprints

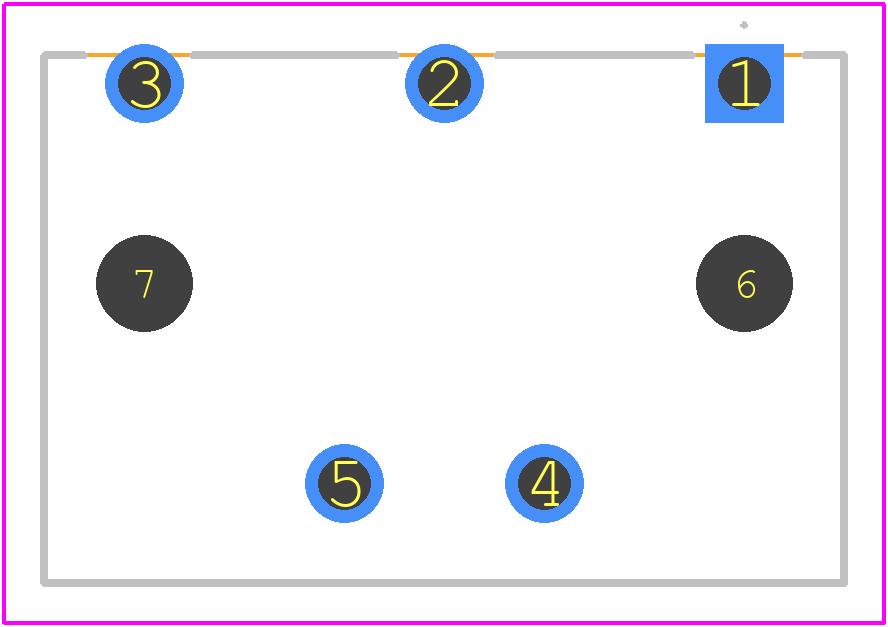

SDS-30J - Same Sky PCB footprint - Other - Other - SDS-30J-1
click to zoom
3D Models
SDS-30J - Same Sky - 3D model - Other - SDS-30J-1
click to zoom

SDS-30J Details

  • Manufacturer Part Number:

    SDS-30J

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    0

  • Body Breadth:

    0.831 inch

  • Body Depth:

    0.52 inch

  • Body Length:

    0.787 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    DIN CONNECTOR

  • Contact Gender:

    FEMALE

  • Contact Pitch Circle Diameter:

    7 mm

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    RND PIN-SKT

  • Dielectric Withstanding Voltage:

    250VAC V

  • Durability:

    1000 Cycles

  • EMI Shielded:

    NO

  • Insertion Force-Max:

    63.7 N

  • Insulation Resistance:

    50000000 Ω

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    2 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.138 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    3

SDS-30J Frequently Asked Questions (FAQs)

  • For optimal performance, it is recommended to follow a 4-layer PCB stackup with a solid ground plane, and to place thermal vias under the device to dissipate heat. A minimum of 2 oz copper thickness is recommended for the top and bottom layers.
  • To ensure reliable operation in high-vibration environments, it is recommended to follow proper PCB mounting and screwing procedures, and to use a vibration-dampening material such as a silicone adhesive or a vibration-absorbing pad under the device.
  • The recommended input capacitor value is 10-22 μF, and a low-ESR ceramic or film capacitor is recommended. The capacitor should be placed as close to the device as possible to minimize noise and ripple.
  • Common issues such as output voltage droop or oscillation can be troubleshooted by checking the input voltage, output load, and PCB layout. Ensure that the input voltage is within the recommended range, the output load is within the specified current rating, and the PCB layout follows the recommended guidelines.
  • The recommended output capacitor value is 10-47 μF, and a low-ESR ceramic or film capacitor is recommended. The capacitor should be placed as close to the output pin as possible to minimize noise and ripple.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SDS-30J Overview

Use the download button to access the SDS-30J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SDS-3, or try a keyword search, such as DIN Connectors
